Mastering Financial Workflows: A Credit Scoring Activity Diagram with PlantUML

By /
Plantuml Edit Plantuml in VPasCode
@startuml
!theme sunlust

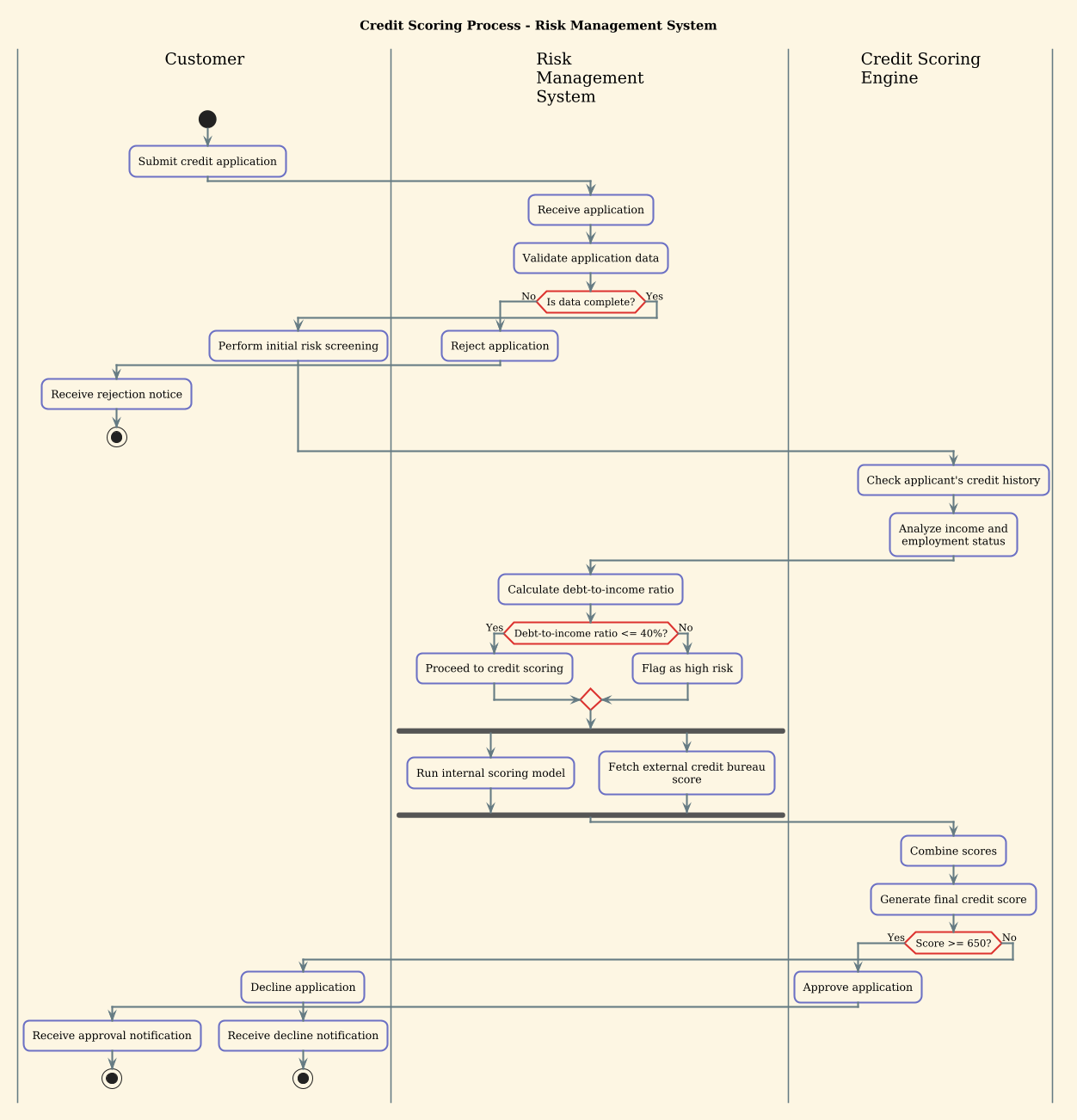

title Credit Scoring Process - Risk Management System

|Customer|
start
:Submit credit application;

|Risk Management System|
:Receive application;
:Validate application data;

if (Is data complete?) then (No)
  :Reject application;
  |Customer|
  :Receive rejection notice;
  stop
else (Yes)
  :Perform initial risk screening;
endif

|Credit Scoring Engine|
:Check applicant's credit history;
:Analyze income and employment status;

|Risk Management System|
:Calculate debt-to-income ratio;

if (Debt-to-income ratio <= 40%?) then (Yes)
  :Proceed to credit scoring;
else (No)
  :Flag as high risk;
endif

fork
  :Run internal scoring model;
fork again
  :Fetch external credit bureau score;
end fork

|Credit Scoring Engine|
:Combine scores;
:Generate final credit score;

if (Score >= 650?) then (Yes)
  :Approve application;
  |Customer|
  :Receive approval notification;
  stop
else (No)
  :Decline application;
  |Customer|
  :Receive decline notification;
  stop
endif
@enduml
Edit Plantuml in VPasCode

In the modern financial sector, risk management is the backbone of sustainable lending. A Credit Scoring Process is not merely a calculation; it is a multi-stage workflow involving data validation, regulatory checks, and parallel analysis across different systems. For architects and business analysts, visualizing this workflow is critical to ensure compliance, identify bottlenecks, and communicate logic clearly to stakeholders.

Mastering Financial Workflows: A Credit Scoring Activity Diagram with PlantUML - Real-world system problem context illustration

Traditional diagramming tools often require manual dragging and dropping, which can lead to inconsistencies and version drift. Diagram-as-code approaches, specifically using PlantUML within the VPasCode editor, offer a superior alternative. By defining your workflow through code, you ensure that your visual documentation remains accurate, versionable, and instantly renderable.

This tutorial serves as a masterclass in building a professional Activity Diagram for a Risk Management System. We will leverage VPasCode‘s instant browser-based rendering to construct a diagram that handles customer interactions, system validations, and parallel scoring logic. This approach enhances architectural clarity and supports living technical documentation without the overhead of complex software installation.

Understanding the Model: Purpose, Scope & Problem Framing

Before diving into the syntax, it is essential to understand the abstraction we are modeling. An Activity Diagram is the standard notation for describing the flow of control in a system, similar to a flowchart but with more robust support for concurrency and swimlanes.

Diagram Abstraction & Representation

In this context, the Activity Diagram models the lifecycle of a loan application. The diagram uses swimlanes to partition responsibilities between different entities: the Customer, the Risk Management System, and the Credit Scoring Engine. This visual separation is crucial in finance to define system boundaries and data ownership.

  • Swimlanes: Represent organizational or system boundaries. Actions in a specific lane belong to that actor.
  • Nodes: Represent specific actions or states, such as “Validate application data” or “Calculate debt-to-income ratio”.
  • Edges: Represent the flow of control, including decision points (if/else) and parallel processing (fork).

Target Domain Scope & Scenario

The scope of this diagram is strictly limited to the Credit Scoring phase of the lending process. It does not model the initial marketing lead generation or the final fund disbursement. The problem space focuses on the decision logic: determining whether an applicant is low-risk or high-risk based on internal and external data sources.

Key Takeaways & Educational Insights

By the end of this guide, you will understand how to:

  • Structure complex financial workflows using PlantUML swimlanes.
  • Implement conditional logic for rejection paths.
  • Model parallel processing for simultaneous credit checks.
  • Utilize VPasCode to instantly visualize and refine these diagrams without local setup.

Complete Diagram & Full Source Code

Below is the complete blueprint for the Credit Scoring Process. This diagram demonstrates a robust workflow that handles both standard approvals and high-risk flags, utilizing the sunlust theme for professional styling.
