Boxplot Chart: Statistical Distribution and Outlier Spotting

When you need to analyze data dispersion and identify unusual data points across groups, the Boxplot Chart (or Box-and-Whisker Plot) is the standard statistical visual tool. By summarizing continuous data into five key numbers—Minimum, First Quartile (Q1), Median (Q2), Third Quartile (Q3), and Maximum—boxplot charts reveal skewness, variability, and extreme outliers at a glance without cluttering the screen with raw data.

The Mechanics of Boxplot Charts

In Apache ECharts, statistical boxes are rendered using type: 'boxplot'. Each dataset entry expects a 5-element numerical array ordered as [Minimum, Q1, Median, Q3, Maximum]. ECharts also includes a built-in data preparation tool to compute these statistical boundaries directly from raw numbers.

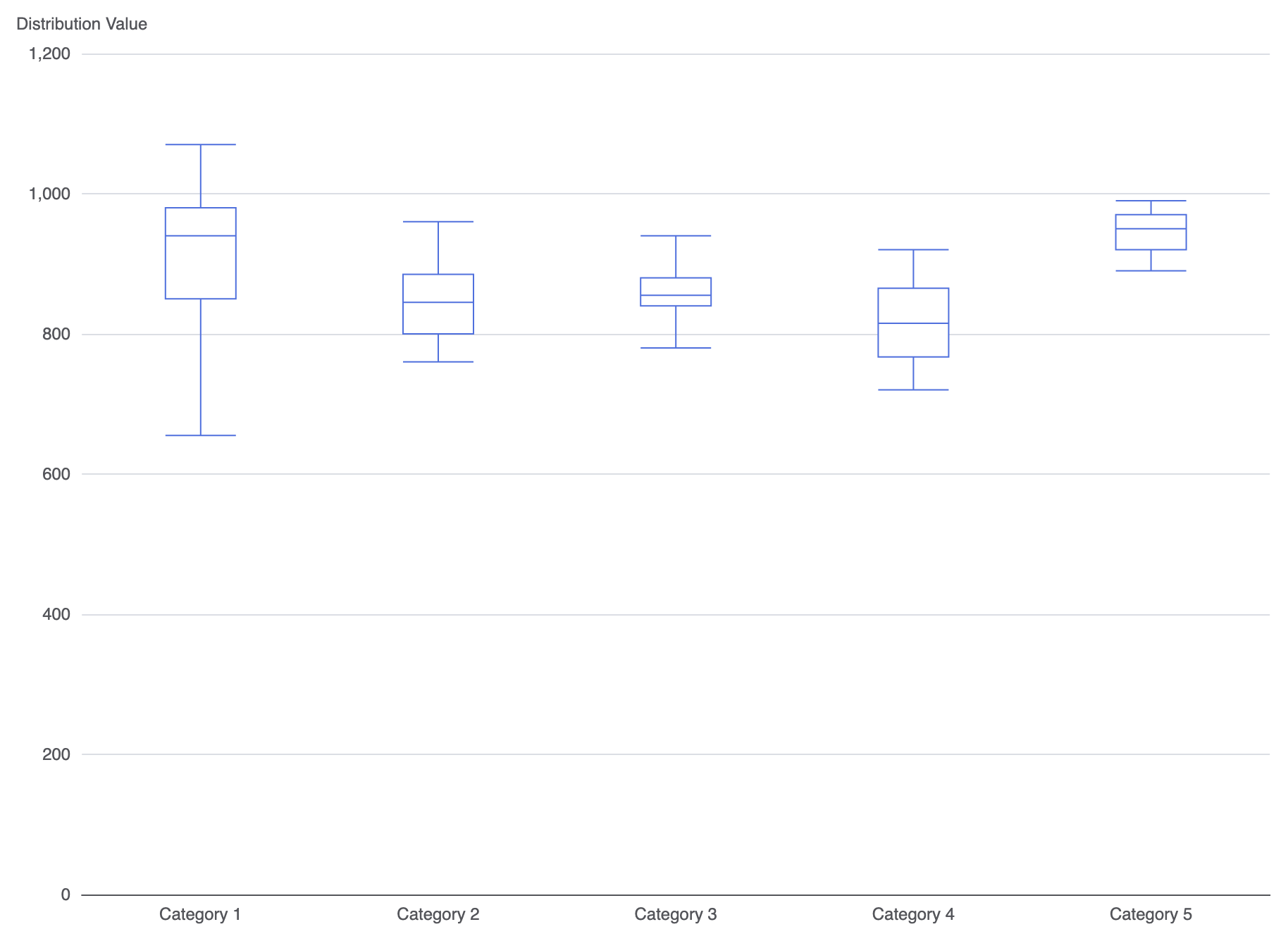

1. Essential Setup

To construct a basic boxplot, map categories along the X-axis and supply calculated 5-number summary arrays inside your series data:

ECharts Edit ECharts in VPasCode

option = {
    tooltip: {
        trigger: 'item',
        axisPointer: { type: 'shadow' }
    },
    xAxis: {
        type: 'category',
        data: ['Category 1', 'Category 2', 'Category 3', 'Category 4', 'Category 5']
    },
    yAxis: {
        type: 'value',
        name: 'Distribution Value'
    },
    series: [
        {
            name: 'Boxplot',
            type: 'boxplot',
            data: [
                [655, 850, 940, 980, 1070], // [Min, Q1, Median, Q3, Max]
                [760, 800, 845, 885, 960],
                [780, 840, 855, 880, 940],
                [720, 767, 815, 865, 920],
                [890, 920, 950, 970, 990]
            ]
        }
    ]
};

Edit ECharts in VPasCode

Advanced Structural Techniques

You can overlay outlier scatter points or build horizontal boxplots for categories with lengthy names.

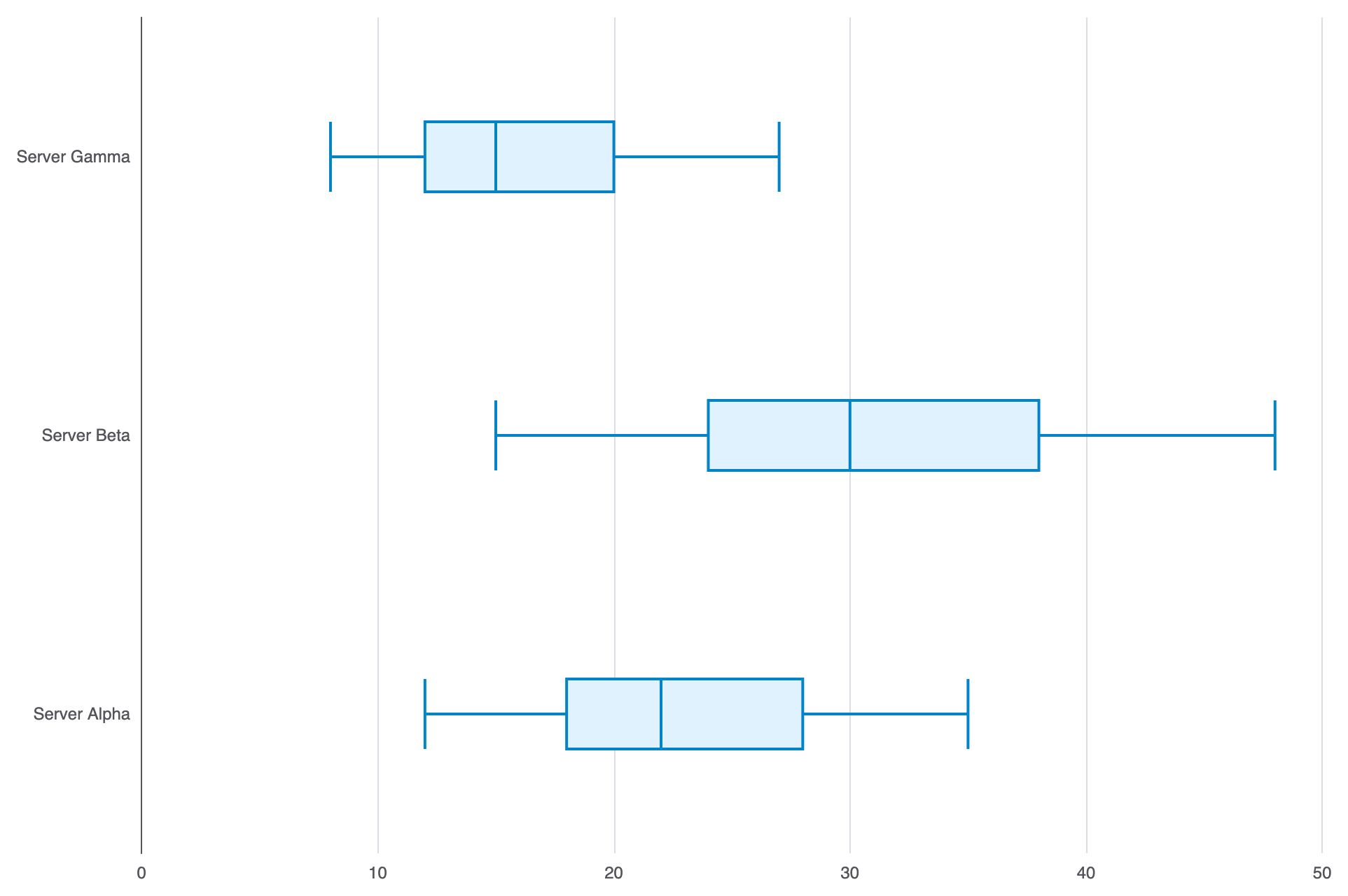

1. Horizontal Boxplot Layout

Set yAxis as the category scale and xAxis as the numerical value scale to flip boxplots horizontally for better label readability:

ECharts Edit ECharts in VPasCode

option = {
    tooltip: {
        trigger: 'item',
        axisPointer: { type: 'shadow' }
    },
    xAxis: {
        type: 'value'
    },
    yAxis: {
        type: 'category',
        data: ['Server Alpha', 'Server Beta', 'Server Gamma']
    },
    series: [
        {
            name: 'Latency (ms)',
            type: 'boxplot',
            data: [
                [12, 18, 22, 28, 35],
                [15, 24, 30, 38, 48],
                [8, 12, 15, 20, 27]
            ],
            itemStyle: {
                color: '#e0f2fe',
                borderColor: '#0284c7',
                borderWidth: 2
            }
        }
    ]
};

Edit ECharts in VPasCode

Fine-Tuning Layout and Styling

Custom box colors, whisker widths, and median line formatting improve visual distinction across complex dashboard layouts.

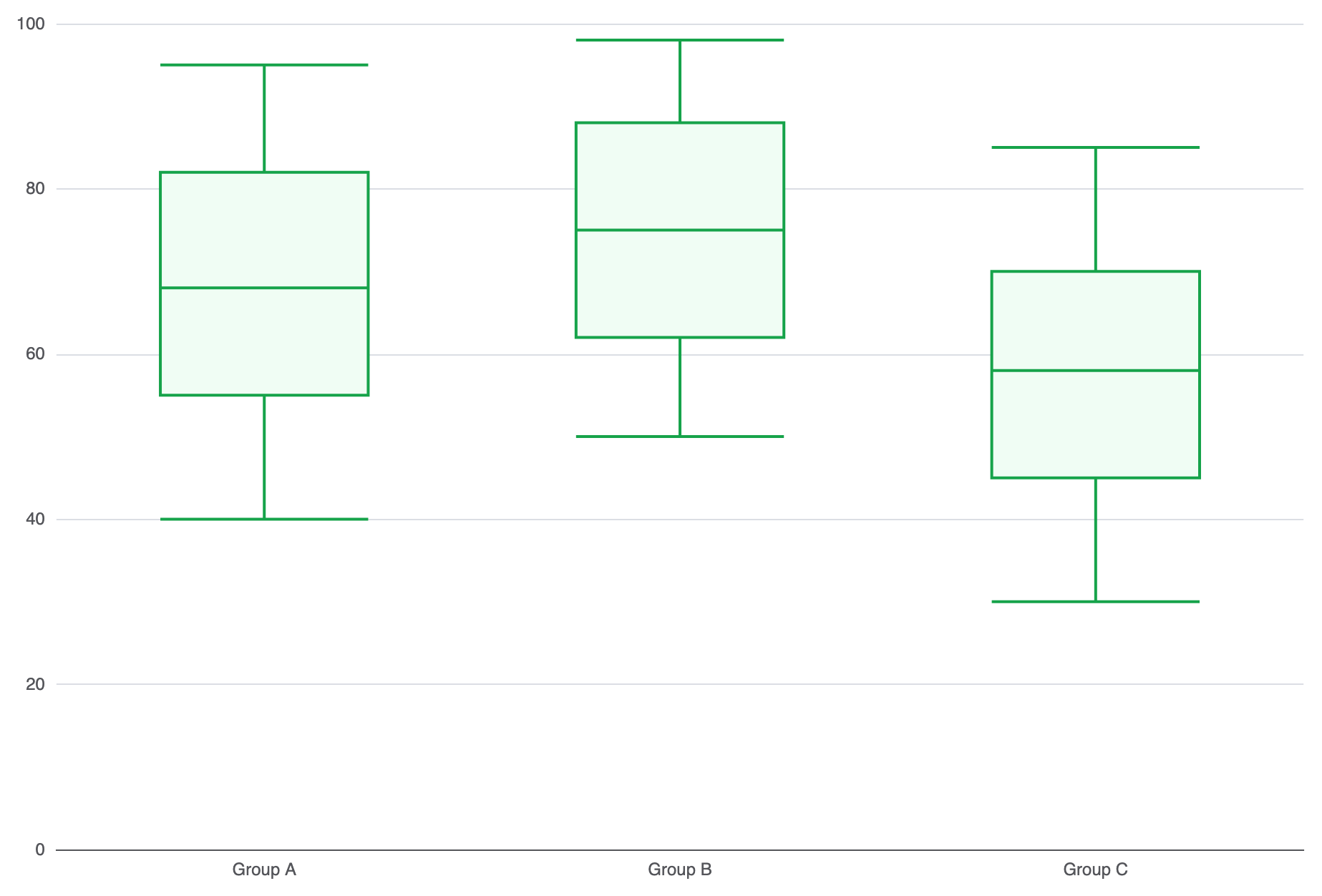

1. Custom Box Fill and Outlier Styling

Style box borders, fill colors, and whisker line properties to match your interface design:

ECharts Edit ECharts in VPasCode

option = {
    grid: {
        left: '10%',
        right: '10%',
        containLabel: true
    },
    xAxis: {
        type: 'category',
        data: ['Group A', 'Group B', 'Group C']
    },
    yAxis: {
        type: 'value'
    },
    series: [
        {
            name: 'Score Distribution',
            type: 'boxplot',
            boxWidth: ['20%', '50%'], // Responsive box width boundaries
            itemStyle: {
                color: '#f0fdf4',
                borderColor: '#16a34a',
                borderWidth: 2
            },
            data: [
                [40, 55, 68, 82, 95],
                [50, 62, 75, 88, 98],
                [30, 45, 58, 70, 85]
            ]
        }
    ]
};

Edit ECharts in VPasCode

Strategic Best Practices

Double-Check Summary Order: Verify that array values follow the strict sequence: [Minimum, Q1, Median, Q3, Maximum]. Incorrect ordering will cause rendering glitches.
Overlay Outliers with Scatter Series: Use a secondary scatter series on top of the boxplot to display extreme statistical outliers as individual data points.
Adjust Grid Padding: Ensure adequate grid.bottom or grid.left padding so long category names don’t clash with whisker lines.
