When architecting Android applications, server-side Ktor services, or multiplatform projects in Kotlin, navigating sealed interface hierarchies, data class aggregates, and dependency injection setups can make it challenging to picture the big picture. The Kotlin Visualizer transforms Kotlin classes, data classes, sealed interfaces, singletons (object), and delegation patterns into clear, interactive class diagrams. By parsing property declarations (val, var), interface implementations, and inheritance models, Kotlin developers and mobile architects can visually inspect domain models and system structures at a glance.

The Mechanics of Kotlin Visualizations

In VPasCode, Kotlin rendering automatically parses class, data class, sealed interface, sealed class, and object declarations into structured UML-style class cards. Data classes and interfaces serve as primary visual nodes, constructor parameters list as typed fields, and inheritance or interface implementation keywords generate direct relationship connectors between visual entities.

1. Essential Setup

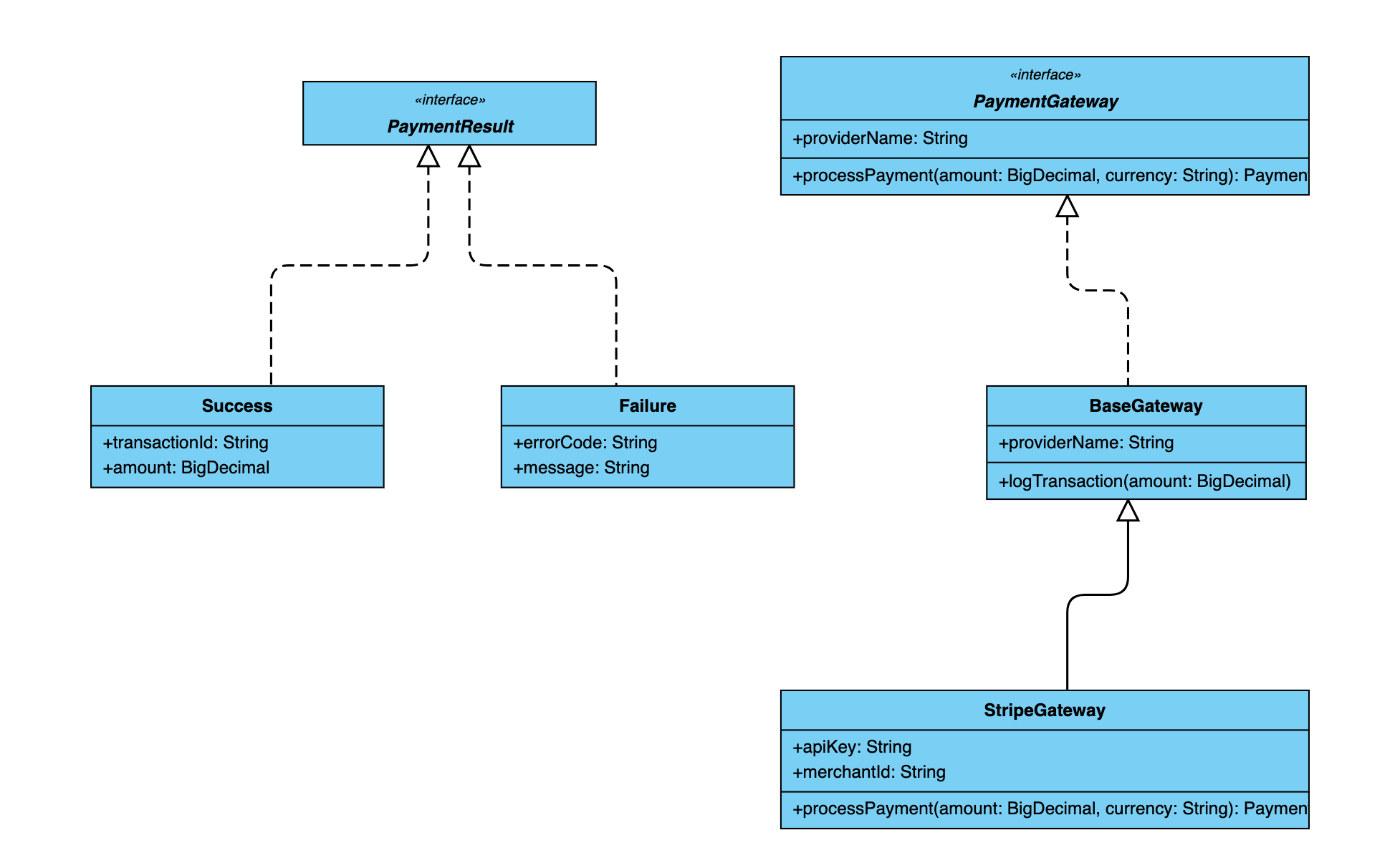

To visualize a standard Kotlin architecture, define sealed interfaces for constrained result types alongside abstract base classes and concrete implementations. Payment processing modules demonstrate clean polymorphic design in Kotlin:

Kotlin Edit Kotlin in VPasCode
package com.example.payment

import java.math.BigDecimal

// Result type hierarchy using sealed interface
sealed interface PaymentResult {
    data class Success(val transactionId: String, val amount: BigDecimal) : PaymentResult
    data class Failure(val errorCode: String, val message: String) : PaymentResult
}

// Interface for payment behavior
interface PaymentGateway {
    val providerName: String
    suspend fun processPayment(amount: BigDecimal, currency: String): PaymentResult
}

// Base abstract provider
abstract class BaseGateway(override val providerName: String) : PaymentGateway {
    protected fun logTransaction(amount: BigDecimal) {
        println("[$providerName] Processing transaction of $amount")
    }
}

// Concrete Stripe implementation
class StripeGateway(
    val apiKey: String,
    val merchantId: String
) : BaseGateway("Stripe") {

    override suspend fun processPayment(amount: BigDecimal, currency: String): PaymentResult {
        logTransaction(amount)
        return PaymentResult.Success(
            transactionId = "tx_stripe_${System.currentTimeMillis()}",
            amount = amount
        )
    }
}
Edit Kotlin in VPasCode



Advanced Structural Techniques

Kotlin visualizations excel at mapping out immutable domain entities, sealed domain states, and functional data flows.

1. E-Commerce Order Processing System

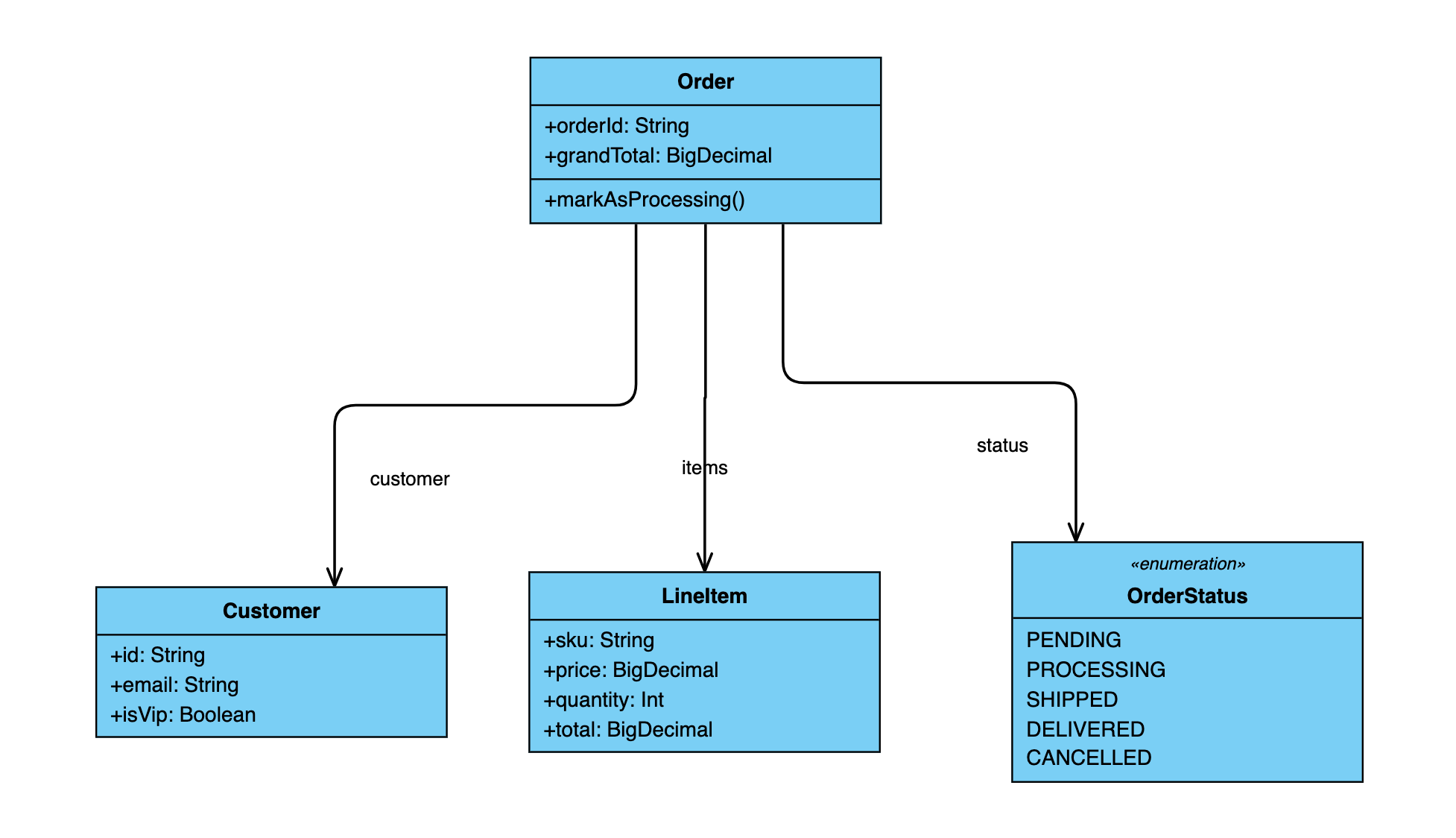

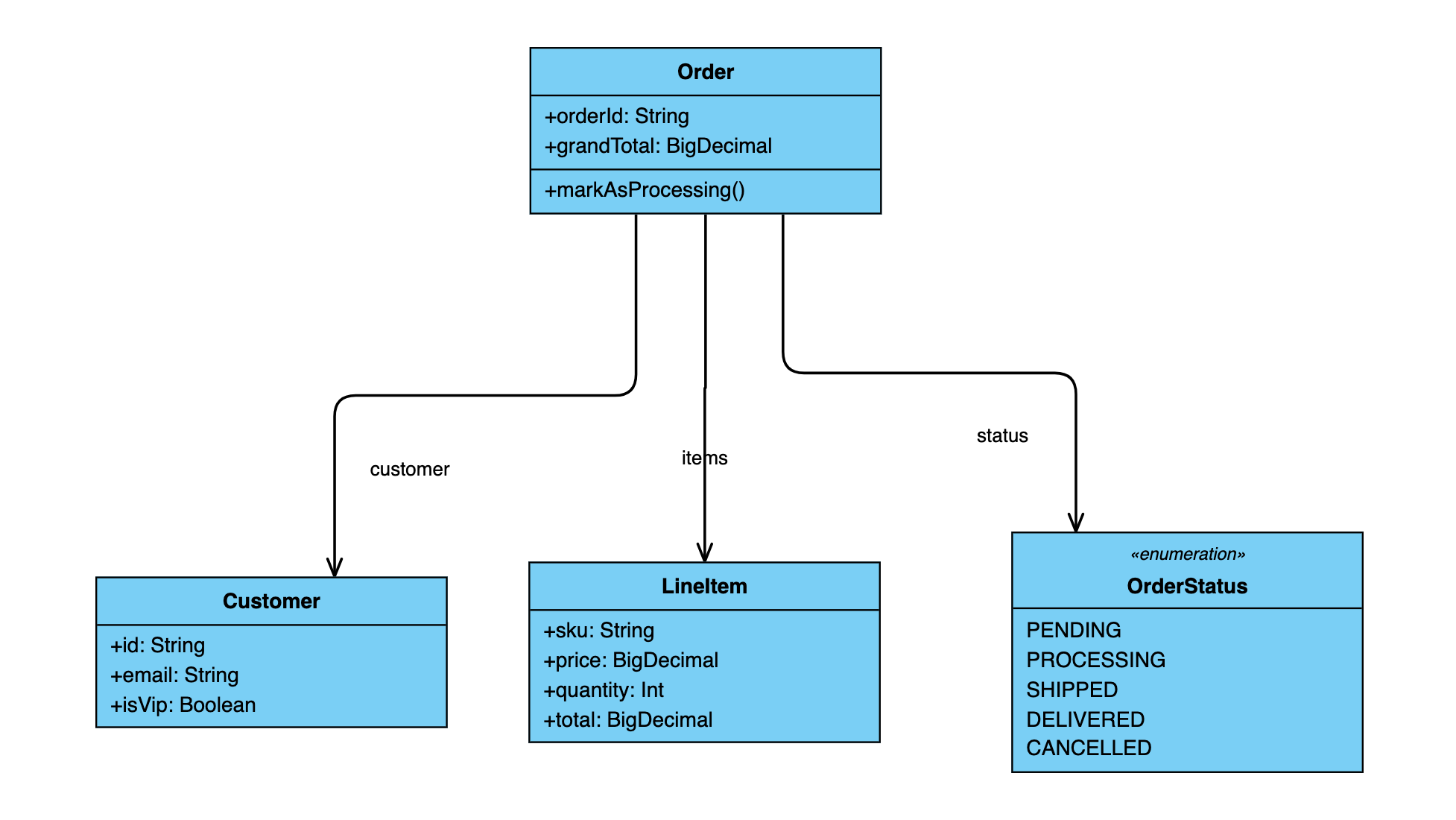

By combining value objects, state representations, and business logic containers, VPasCode transforms Kotlin domain models into clear, structured diagram networks:

Kotlin Edit Kotlin in VPasCode
package com.example.order

import java.math.BigDecimal

enum class OrderStatus {
    PENDING, PROCESSING, SHIPPED, DELIVERED, CANCELLED
}

data class LineItem(
    val sku: String,
    val price: BigDecimal,
    val quantity: Int
) {
    val total: BigDecimal get() = price.multiply(BigDecimal(quantity))
}

data class Customer(
    val id: String,
    val email: String,
    val isVip: Boolean = false
)

class Order(
    val orderId: String,
    val customer: Customer,
    val items: List
) {
    var status: OrderStatus = OrderStatus.PENDING
        private set

    val grandTotal: BigDecimal
        get() = items.fold(BigDecimal.ZERO) { acc, item -> acc.add(item.total) }

    fun markAsProcessing() {
        check(status == OrderStatus.PENDING) { "Order must be pending to process" }
        status = OrderStatus.PROCESSING
    }
}
Edit Kotlin in VPasCode



Structuring User Authentication and Security Modules

Visualizing authentication flows, token generators, and permission checkers helps backend and Android engineers keep security layers well-organized.

1. User Authentication and Permission Module

Group credentials, token contracts, and session managers to map out authorization boundaries:

Kotlin Edit Kotlin in VPasCode
package com.example.auth

enum class UserRole {
    GUEST, MEMBER, ADMIN
}

data class UserSession(
    val userId: String,
    val email: String,
    val role: UserRole,
    val authToken: String
) {
    val isAdmin: Boolean get() = role == UserRole.ADMIN
}

interface TokenProvider {
    fun generateToken(userId: String): String
    fun validateToken(token: String): Boolean
}

object JwtTokenProvider : TokenProvider {
    override fun generateToken(userId: String): String = "jwt_token_for_$userId"
    override fun validateToken(token: String): Boolean = token.startsWith("jwt_token_")
}

class AuthService(
    private val tokenProvider: TokenProvider
) {
    fun authenticate(user: UserSession, requiredRole: UserRole): Boolean {
        if (!tokenProvider.validateToken(user.authToken)) return false
        if (user.isAdmin) return true
        return user.role == requiredRole
    }
}
Edit Kotlin in VPasCode



Strategic Best Practices

  • Use Data Classes for Value Holders: Define lightweight data containers with data class so constructor parameters render neatly as explicit fields.
  • Leverage Sealed Interfaces for State: Model exhaustive result states and domain variations using sealed interface to group sub-types cleanly in diagrams.
  • Highlight Singletons with object: Use the object keyword for stateless utilities or service implementations to clearly distinguish singletons from standard instantiable classes.
