When evaluating complex performance profiles across multiple qualitative or quantitative metrics simultaneously, the Radar Chart (or Spider Web Chart) is an ideal visualization tool. By placing multiple feature scales along radial axes originating from a central point, radar charts display multi-dimensional comparisons as distinct polygon shapes. This makes them well-suited for skill assessments, vendor evaluation scorecards, product feature benchmarks, or player performance profiles.
The Mechanics of Radar Charts
In Apache ECharts, radar charts rely on a dedicated radar configuration block that defines the radial axes, known as indicator keys. The series object sets type: 'radar' and maps numeric array values corresponding to each declared indicator scale.

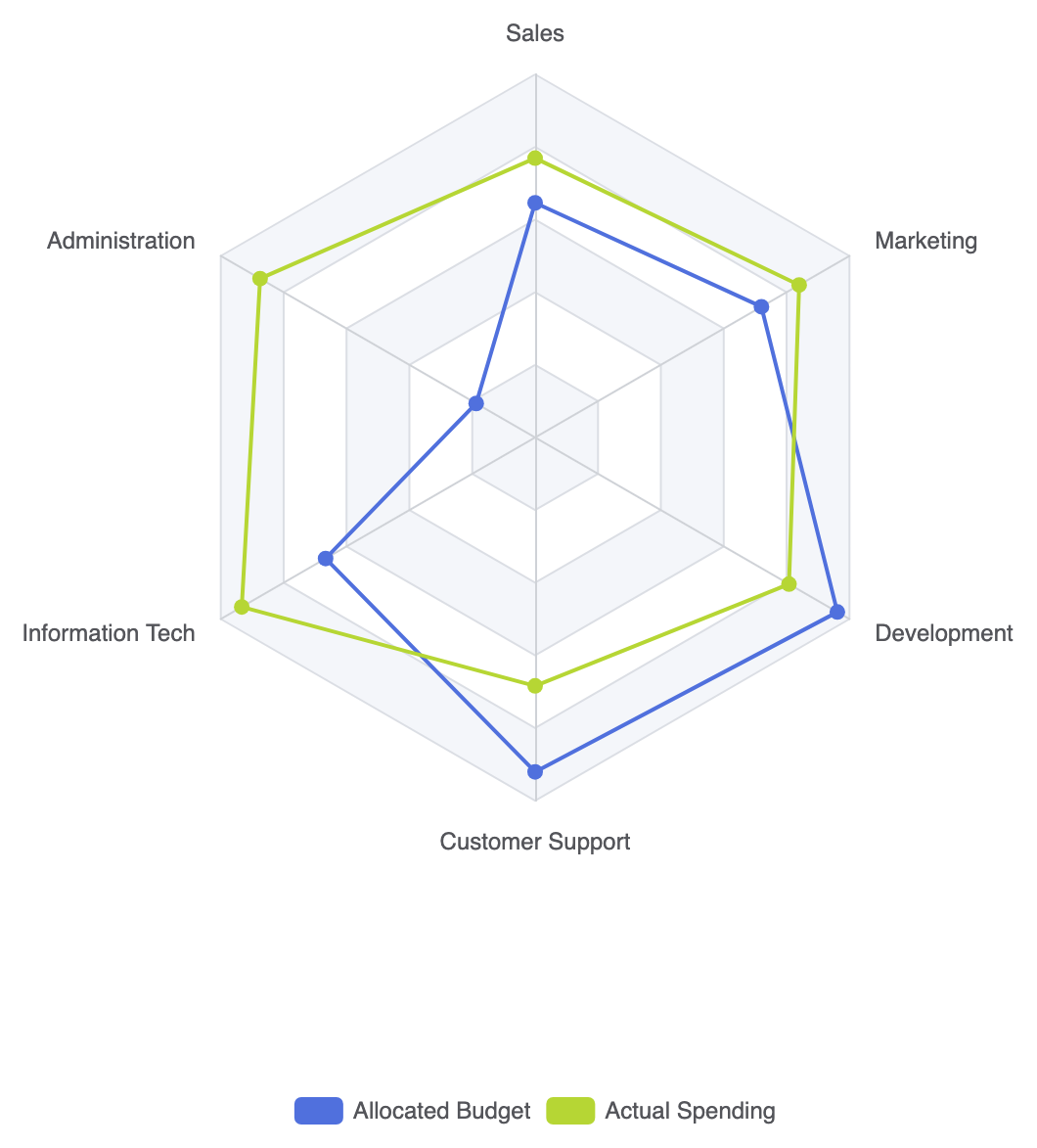

1. Essential Setup
To build a basic radar chart, define your dimension thresholds inside radar.indicator and pass numeric arrays within your series data:
option = {
tooltip: {
trigger: 'item'
},
legend: {
data: ['Allocated Budget', 'Actual Spending']
},
radar: {
indicator: [
{ name: 'Sales', max: 6500 },
{ name: 'Administration', max: 16000 },
{ name: 'Information Tech', max: 30000 },
{ name: 'Customer Support', max: 38000 },
{ name: 'Development', max: 52000 },
{ name: 'Marketing', max: 25000 }
]
},
series: [
{
name: 'Budget vs Spending',
type: 'radar',
data: [
{
value: [4200, 3000, 20000, 35000, 50000, 18000],
name: 'Allocated Budget'
},
{
value: [5000, 14000, 28000, 26000, 42000, 21000],
name: 'Actual Spending'
}
]
}
]
};
Advanced Structural Techniques
Radar charts can be styled using filled area polygons, circle grid shapes, or distinct color themes to make profile overlapping easier to read.

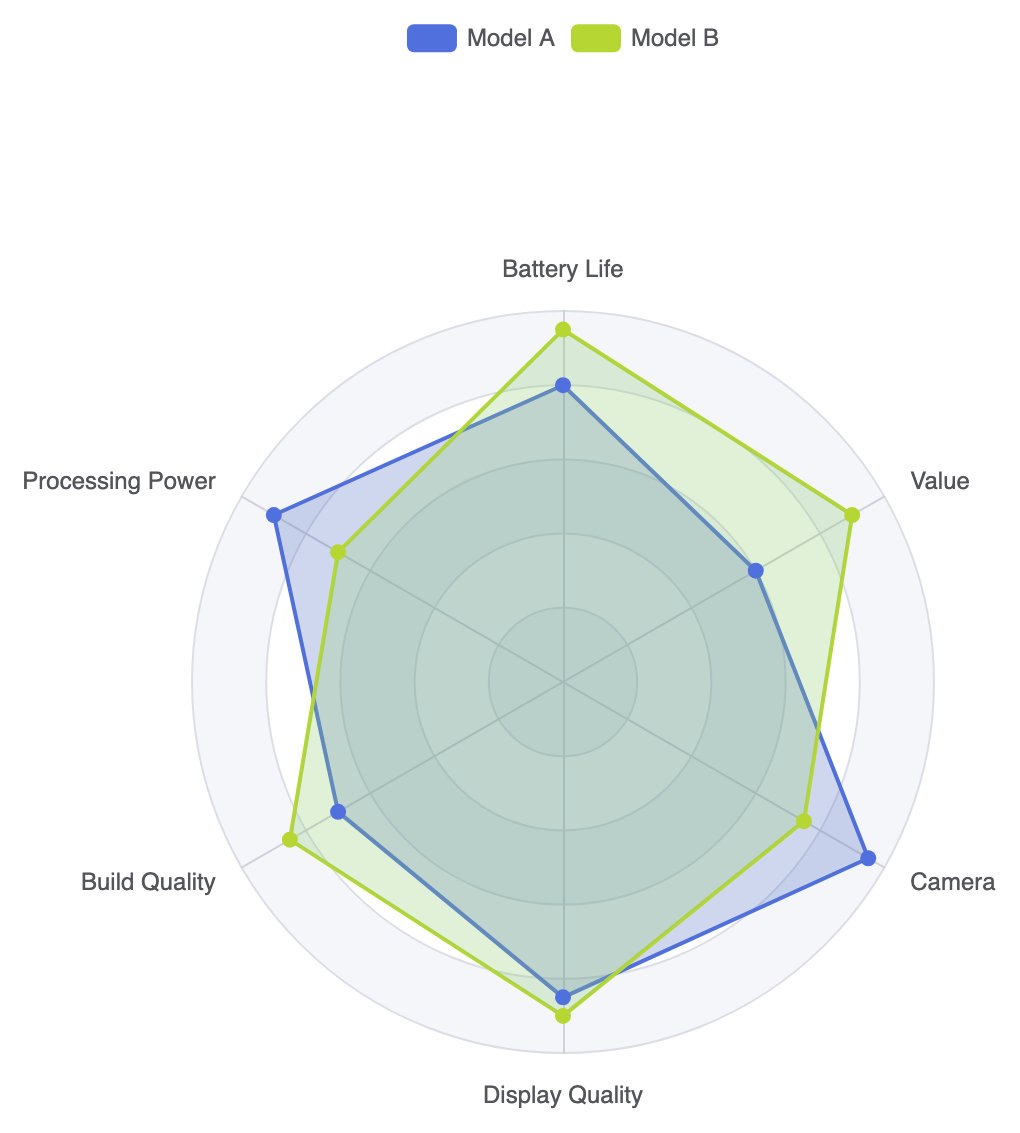

1. Polygon Area Fill with Custom Grid Shapes
Switching the background web grid from polygon to circle and applying transparent area fills highlights the overall footprint of each metric profile:
option = {
tooltip: {
trigger: 'item'
},
legend: {
top: '5%',
data: ['Model A', 'Model B']
},
radar: {
shape: 'circle', // Circular background web
indicator: [
{ name: 'Battery Life', max: 100 },
{ name: 'Processing Power', max: 100 },
{ name: 'Build Quality', max: 100 },
{ name: 'Display Quality', max: 100 },
{ name: 'Camera', max: 100 },
{ name: 'Value', max: 100 }
]
},
series: [
{
type: 'radar',
data: [
{
value: [80, 90, 70, 85, 95, 60],
name: 'Model A',
areaStyle: {
color: 'rgba(84, 112, 198, 0.4)'
}
},
{
value: [95, 70, 85, 90, 75, 90],
name: 'Model B',
areaStyle: {
color: 'rgba(145, 204, 117, 0.4)'
}
}
]
}
]
};
Fine-Tuning Layout and Styling
Adjusting indicator text colors, split lines, and symbol sizes prevents multi-axis web lines from overwhelming the data.

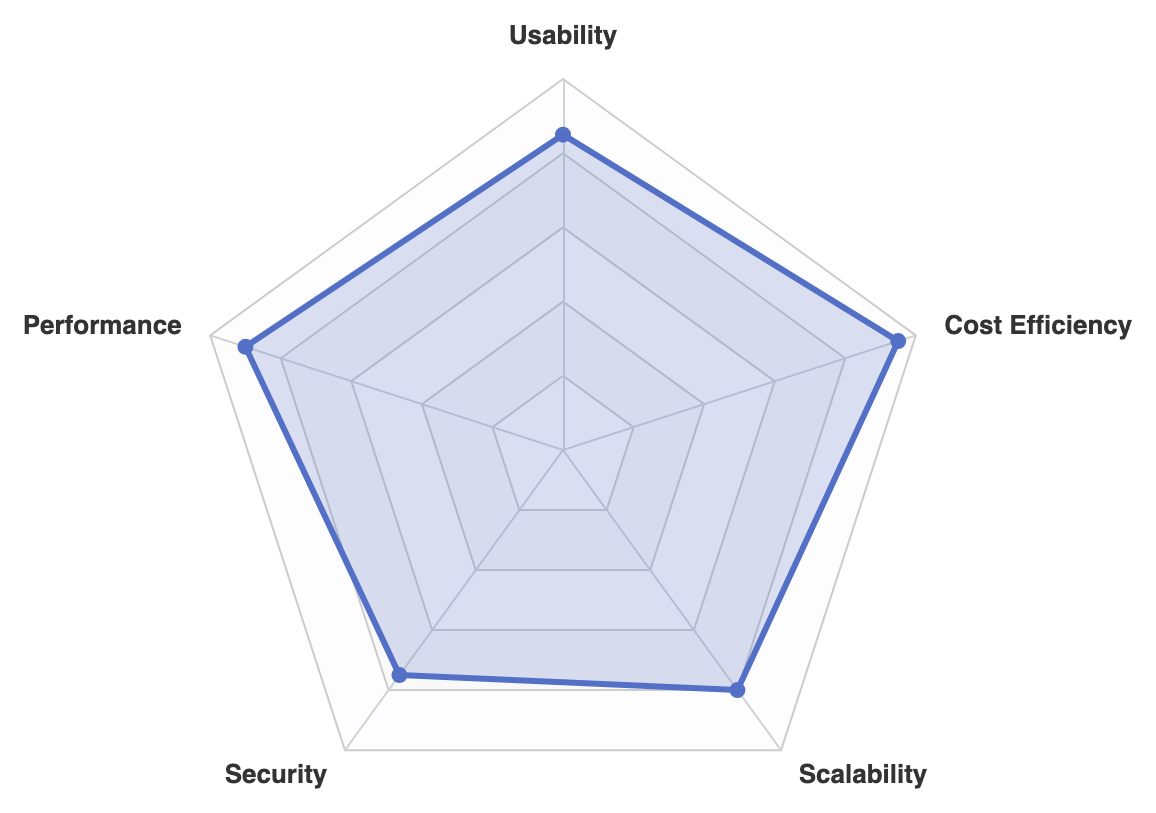

1. Custom Web Grid and Label Formatting
Style axis lines, split areas, and outer labels to maintain clean visual contrast on dark or light interfaces:
option = {
radar: {
indicator: [
{ name: 'Usability', max: 10 },
{ name: 'Performance', max: 10 },
{ name: 'Security', max: 10 },
{ name: 'Scalability', max: 10 },
{ name: 'Cost Efficiency', max: 10 }
],
axisName: {
color: '#333',
fontSize: 13,
fontWeight: 'bold'
},
splitArea: {
areaStyle: {
color: ['rgba(250,250,250,0.3)', 'rgba(200,200,200,0.1)']
}
},
splitLine: {
lineStyle: {
color: '#ccc'
}
}
},
series: [
{
type: 'radar',
symbolSize: 8,
lineStyle: {
width: 3
},
data: [
{
value: [8.5, 9.0, 7.5, 8.0, 9.5],
name: 'Platform Score',
itemStyle: {
color: '#5470c6'
},
areaStyle: {
color: 'rgba(84, 112, 198, 0.3)'
}
}
]
}
]
};
Strategic Best Practices
- Standardize Axis Scales: Ensure all indicators use normalized scale ranges (e.g., 0 to 100 or 1 to 10) whenever possible so outer polygon areas reflect balanced comparisons.
- Keep Series Overlays Low: Limit radar comparison shapes to 2 or 3 per chart. Overlapping 4 or more filled polygons makes individual shape boundaries hard to isolate.
- Use Low Opacity Area Fills: Always apply transparent fills (around 0.2–0.4 opacity) so underlying gridlines and intersecting profiles remain visible underneath top layers.
