Graph Chart: Network Topology and Relationship Mapping

When mapping interconnected networks, structural hierarchies, or complex entity relationships, the Graph Chart (or Network Graph) is the ideal visual framework. By displaying items as nodes and connections as directed or undirected links, graph charts allow users to explore clusters, dependency trees, and relational flows that standard tabular charts cannot convey—such as microservice architectures, social network interactions, or knowledge graphs.

The Mechanics of Graph Charts

In Apache ECharts, graph charts use type: 'graph'. Instead of mapping numeric values directly to horizontal and vertical axis coordinates, a graph chart takes a collection of explicit nodes (or data) and links (or edges). ECharts then arranges these nodes using fixed coordinate placements, circular layouts, or a dynamic force-directed physics engine.

1. Essential Setup

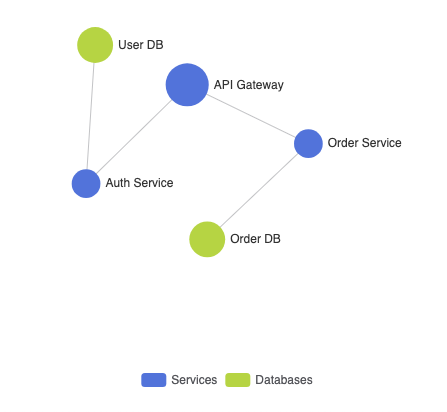

To build a basic network graph using force-directed physics, declare your nodes inside data, map connections inside links, and set layout: 'force':

option = {
    tooltip: {},
    legend: {
        data: ['Services', 'Databases']
    },
    series: [
        {
            name: 'System Network',
            type: 'graph',
            layout: 'force',
            roam: true, // Allows zooming and panning
            label: {
                show: true,
                position: 'right'
            },
            force: {
                repulsion: 100,
                edgeLength: 80
            },
            data: [
                { id: '0', name: 'API Gateway', symbolSize: 30, category: 0 },
                { id: '1', name: 'Auth Service', symbolSize: 20, category: 0 },
                { id: '2', name: 'Order Service', symbolSize: 20, category: 0 },
                { id: '3', name: 'User DB', symbolSize: 25, category: 1 },
                { id: '4', name: 'Order DB', symbolSize: 25, category: 1 }
            ],
            links: [
                { source: '0', target: '1' },
                { source: '0', target: '2' },
                { source: '1', target: '3' },
                { source: '2', target: '4' }
            ],
            categories: [
                { name: 'Services' },
                { name: 'Databases' }
            ]
        }
    ]
};



Advanced Structural Techniques

Graph charts support alternative layout engines like circular ring alignment or directed arrows to show data dependencies clearly.

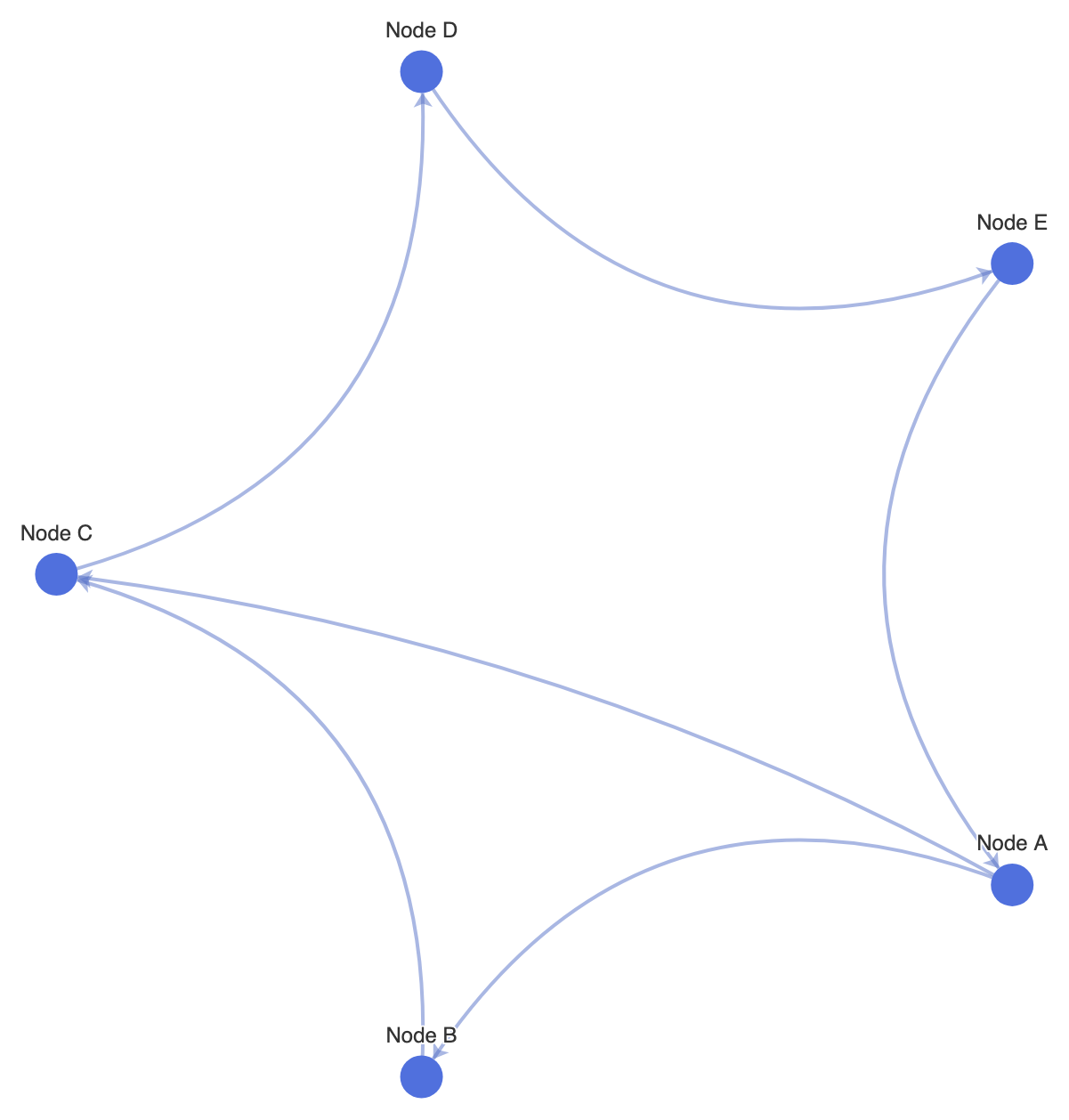

1. Circular Layout with Directed Link Arrows

Set layout: 'circular' to organize nodes in a clean ring structure, and enable edge arrows to show directional relationships between components:

option = {
    tooltip: {},
    series: [
        {
            type: 'graph',
            layout: 'circular',
            roam: true,
            label: {
                show: true,
                position: 'outside'
            },
            edgeSymbol: ['none', 'arrow'], // Draw arrows on link endpoints
            edgeSymbolSize: [0, 8],
            data: [
                { id: 'A', name: 'Node A', symbolSize: 24 },
                { id: 'B', name: 'Node B', symbolSize: 24 },
                { id: 'C', name: 'Node C', symbolSize: 24 },
                { id: 'D', name: 'Node D', symbolSize: 24 },
                { id: 'E', name: 'Node E', symbolSize: 24 }
            ],
            links: [
                { source: 'A', target: 'B' },
                { source: 'B', target: 'C' },
                { source: 'C', target: 'D' },
                { source: 'D', target: 'E' },
                { source: 'E', target: 'A' },
                { source: 'A', target: 'C' }
            ],
            lineStyle: {
                color: '#5470c6',
                width: 2,
                curveness: 0.2 // Curve connection lines to avoid overlap
            }
        }
    ]
};



Fine-Tuning Layout and Node Styling

Adjusting edge curvature, node border shadows, and interaction options keeps dense network clusters readable on interactive web pages.

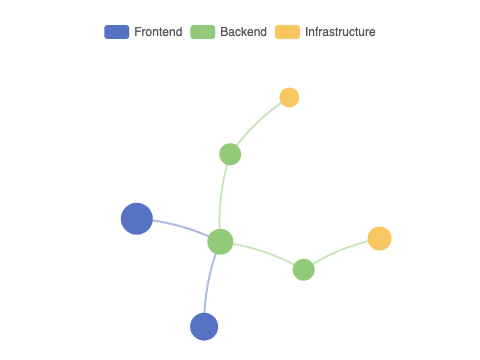

1. Custom Node Category Colors and Force Physics

Tweak repulsion values and line styles to create structured, visually separated clusters:

option = {
    legend: {
        top: '5%',
        left: 'center'
    },
    series: [
        {
            type: 'graph',
            layout: 'force',
            roam: true,
            draggable: true,
            force: {
                repulsion: 250,
                gravity: 0.1,
                edgeLength: [50, 100]
            },
            categories: [
                { name: 'Frontend', itemStyle: { color: '#5470c6' } },
                { name: 'Backend', itemStyle: { color: '#91cc75' } },
                { name: 'Infrastructure', itemStyle: { color: '#fac858' } }
            ],
            data: [
                { name: 'Web App', category: 0, symbolSize: 32 },
                { name: 'Mobile App', category: 0, symbolSize: 28 },
                { name: 'API Gateway', category: 1, symbolSize: 26 },
                { name: 'Microservice A', category: 1, symbolSize: 22 },
                { name: 'Microservice B', category: 1, symbolSize: 22 },
                { name: 'Redis Cache', category: 2, symbolSize: 20 },
                { name: 'PostgreSQL', category: 2, symbolSize: 24 }
            ],
            links: [
                { source: 'Web App', target: 'API Gateway' },
                { source: 'Mobile App', target: 'API Gateway' },
                { source: 'API Gateway', target: 'Microservice A' },
                { source: 'API Gateway', target: 'Microservice B' },
                { source: 'Microservice A', target: 'Redis Cache' },
                { source: 'Microservice B', target: 'PostgreSQL' }
            ],
            lineStyle: {
                color: 'source', // Color edge based on source node color
                width: 2,
                curveness: 0.1
            }
        }
    ]
};



Strategic Best Practices

  • Enable roam: true for Navigation: Interactive networks grow quickly. Enabling zoom and pan navigation lets users focus on specific clusters without feeling cramped.
  • Apply curveness to Edges: Setting a slight curvature (e.g., lineStyle.curveness: 0.1 to 0.2) prevents bidirectional links between two identical nodes from overlapping into a single line.
  • Balance Force Physics Repulsion: Tune force.repulsion carefully. Values that are too low will cause nodes to overlap into a dense cluster, while values that are too high will push nodes completely off the visible canvas.
