Funnel Chart: Conversion Stages and Process Drop-Off

When tracking progressive drop-off across sequential steps or conversion pipelines, the Funnel Chart is the standard visual tool. By displaying values as stacked trapezoidal blocks that narrow or widen across stages, funnel charts allow users to spot conversion bottlenecks, drop-off rates, and process efficiency at a glance—such as sales pipeline stages, e-commerce checkout flows, or lead generation funnels.

The Mechanics of Funnel Charts

In Apache ECharts, funnel charts are rendered using type: 'funnel'. Each data object contains a name and a numeric value. The engine automatically sorts data from largest to smallest (or vice versa) and scales the width of each trapezoid relative to the maximum value in the series.

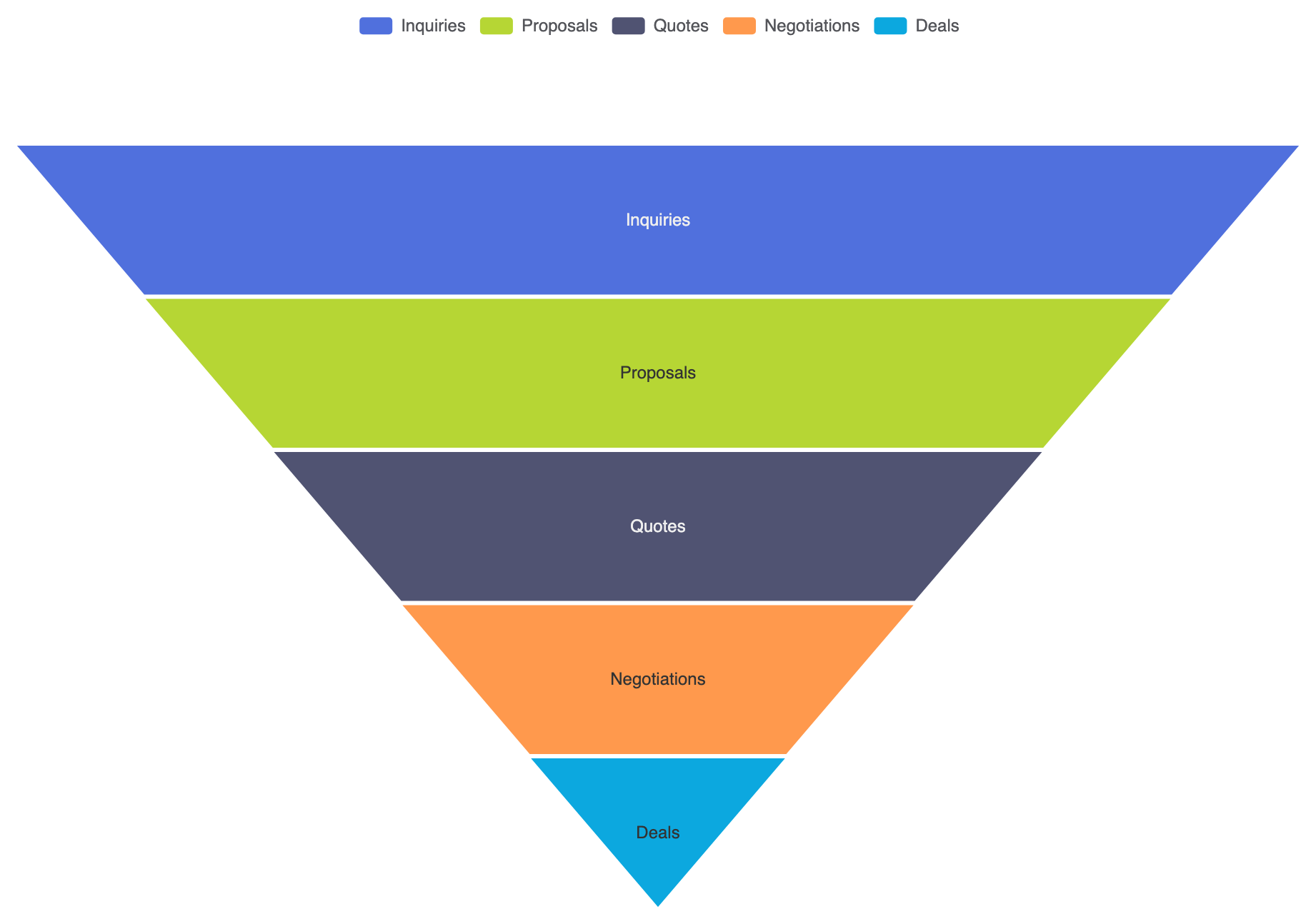

1. Essential Setup

To construct a basic funnel chart, supply category stages inside your series data array and set type: 'funnel':

ECharts Edit ECharts in VPasCode

option = {
    tooltip: {
        trigger: 'item',
        formatter: '{a}
{b}: {c} ({d}%)'
    },
    legend: {
        top: '5%',
        left: 'center',
        data: ['Inquiries', 'Proposals', 'Quotes', 'Negotiations', 'Deals']
    },
    series: [
        {
            name: 'Sales Funnel',
            type: 'funnel',
            left: '10%',
            top: '18%',
            bottom: '10%',
            width: '80%',
            min: 0,
            max: 100,
            minSize: '0%',
            maxSize: '100%',
            sort: 'descending',
            gap: 2,
            label: {
                show: true,
                position: 'inside'
            },
            data: [
                { value: 100, name: 'Inquiries' },
                { value: 80, name: 'Proposals' },
                { value: 60, name: 'Quotes' },
                { value: 40, name: 'Negotiations' },
                { value: 20, name: 'Deals' }
            ]
        }
    ]
};

Edit ECharts in VPasCode

Advanced Structural Techniques

Funnel charts can be customized with pyramid layouts, custom stage alignments, or dual funnel overlays to compare different conversion channels.

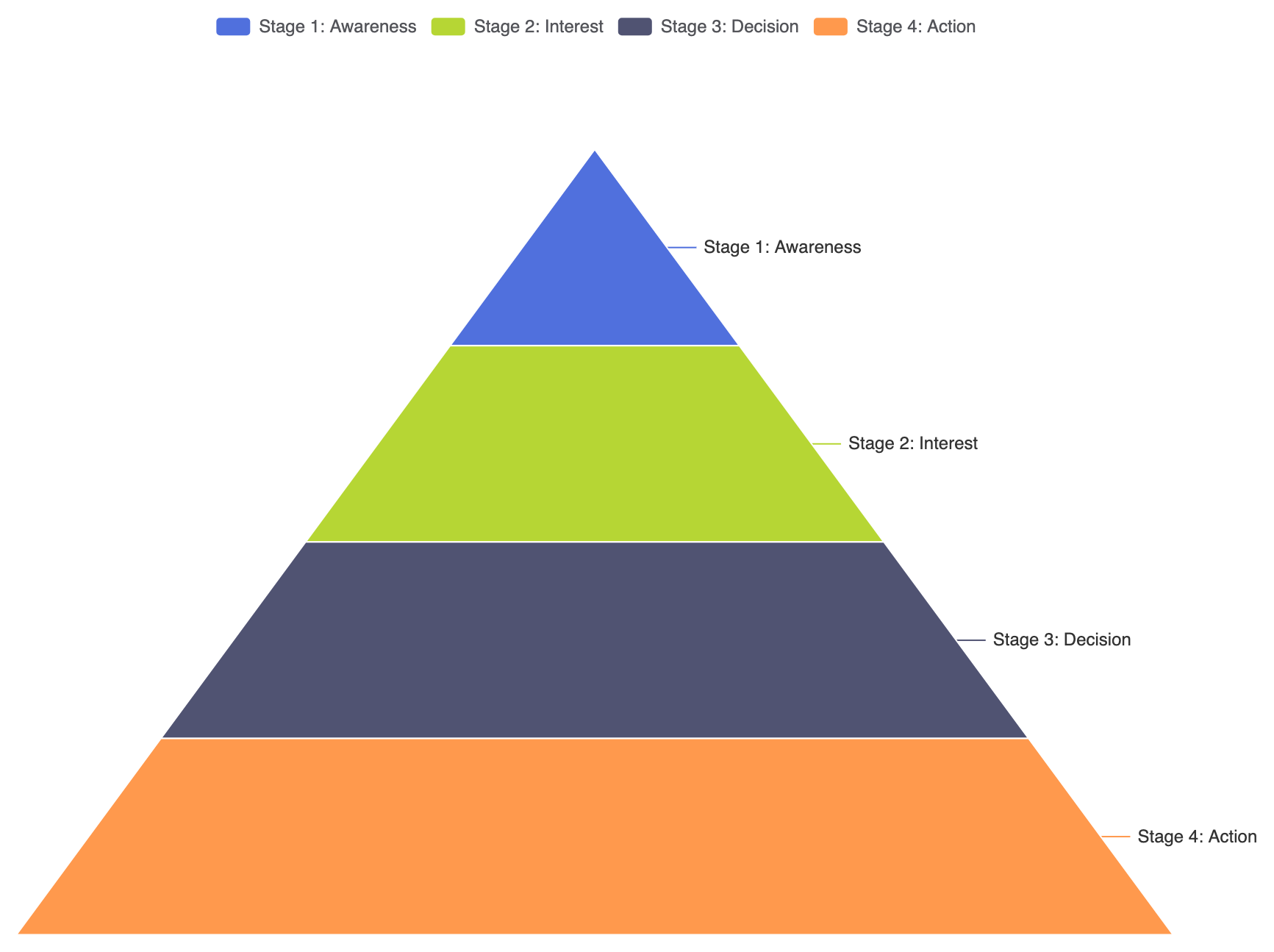

1. Inverted Pyramid Layout and Custom Alignments

Change sort: 'ascending' to create an inverted pyramid, or adjust funnelAlign to align stages along the left or right edge:

ECharts Edit ECharts in VPasCode

option = {
    tooltip: {
        trigger: 'item',
        formatter: '{b}: {c}%'
    },
    legend: {
        top: '5%',
        left: 'center'
    },
    series: [
        {
            name: 'Conversion Pyramid',
            type: 'funnel',
            left: '15%',
            top: '18%',
            bottom: '10%',
            width: '70%',
            sort: 'ascending', // Renders smallest stage at top, largest at bottom
            funnelAlign: 'center',
            label: {
                show: true,
                position: 'right'
            },
            data: [
                { value: 20, name: 'Stage 1: Awareness' },
                { value: 40, name: 'Stage 2: Interest' },
                { value: 60, name: 'Stage 3: Decision' },
                { value: 80, name: 'Stage 4: Action' }
            ]
        }
    ]
};

Edit ECharts in VPasCode

Fine-Tuning Layout and Stage Styling

Adding gaps, rounded borders, and custom label formatters creates clean spacing between conversion stages.

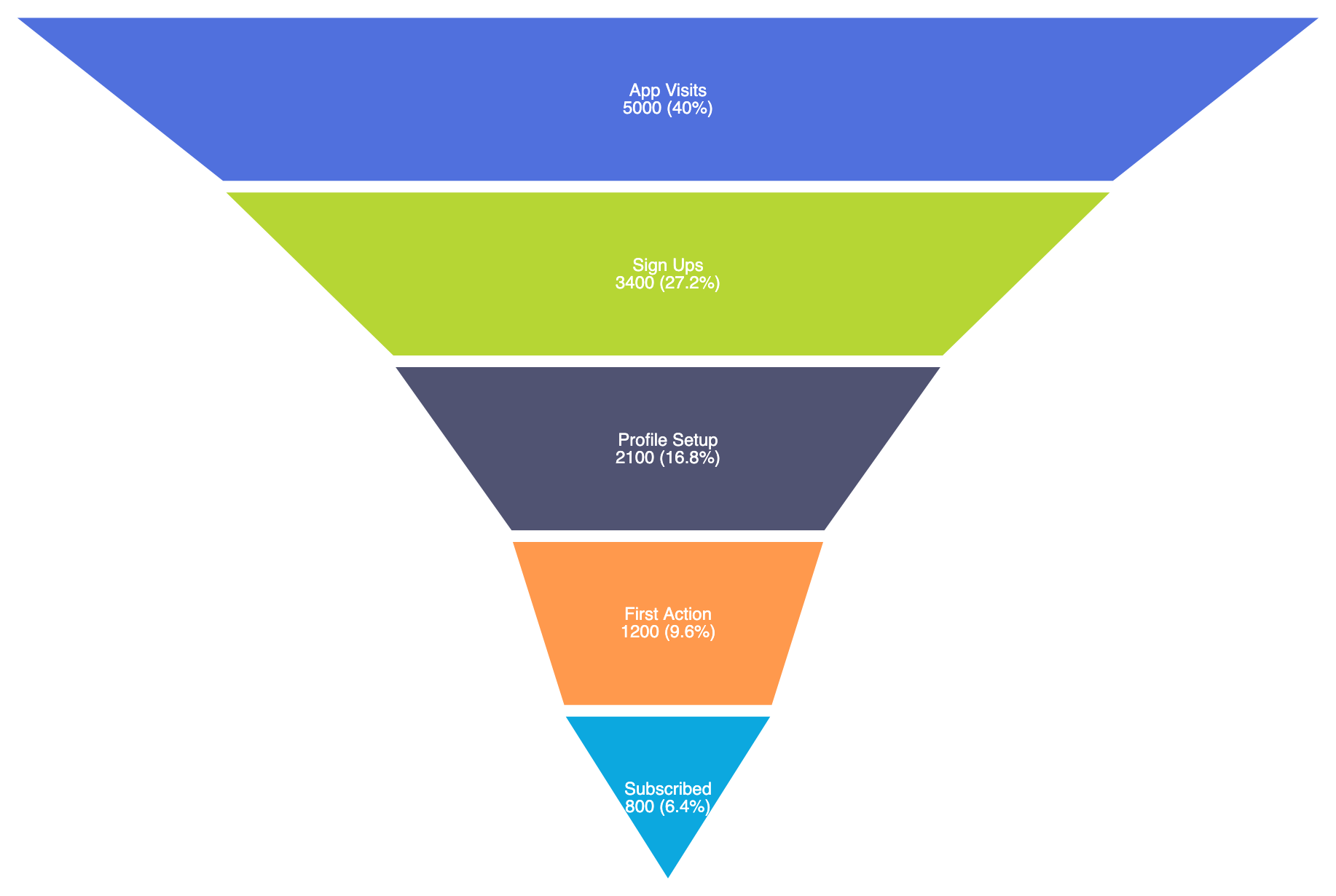

1. Custom Stage Spacing and Percentage Labels

Control gap spacing between trapezoids and use custom label formatters to highlight percentage retention across stages:

ECharts Edit ECharts in VPasCode

option = {
    tooltip: {
        trigger: 'item',
        formatter: '{b}: {c} Users'
    },
    series: [
        {
            name: 'User Onboarding',
            type: 'funnel',
            left: '10%',
            top: '10%',
            bottom: '10%',
            width: '80%',
            gap: 6, // Adds clear separation between stages
            itemStyle: {
                borderColor: '#ffffff',
                borderWidth: 2,
                borderRadius: 4
            },
            label: {
                show: true,
                position: 'inside',
                formatter: '{b}\n{c} ({d}%)',
                color: '#fff',
                fontSize: 12
            },
            data: [
                { value: 5000, name: 'App Visits' },
                { value: 3400, name: 'Sign Ups' },
                { value: 2100, name: 'Profile Setup' },
                { value: 1200, name: 'First Action' },
                { value: 800, name: 'Subscribed' }
            ]
        }
    ]
};

Edit ECharts in VPasCode

Strategic Best Practices

Keep Stages Sequential: Funnel charts rely on sequential flow logic. Ensure data items represent actual step-by-step processes rather than unrelated categories.
Use gap for Clear Visual Stage Bounds: Setting a small gap (e.g., 4px to 6px) between trapezoids prevents adjacent colors from bleeding together into a single block.
Display Stage Percentages: Combine raw numbers with step percentages (e.g., using {d}% in label formatters) so users can instantly evaluate drop-off ratios at each milestone.
