When designing object-oriented applications, managing inheritance hierarchies, or conducting code reviews, reading raw Java source code can make it difficult to visualize class relationships. The Java Visualizer transforms Java class definitions, abstract classes, and interfaces into clear, interactive class diagrams. By parsing class structures, member visibility, inheritance (extends), and interface implementations (implements), developers and software architects can instantly audit application architecture and object-oriented designs.

The Mechanics of Java Visualizations

In VPasCode, Java rendering automatically parses interfaces, abstract classes, fields, methods, and relationship keywords into structured UML-style class diagrams. Classes serve as main entity cards, visibility modifiers (public, protected, private) display as attribute symbols, and inheritance or interface implementation keywords automatically generate relationship connectors between class nodes.

1. Essential Setup

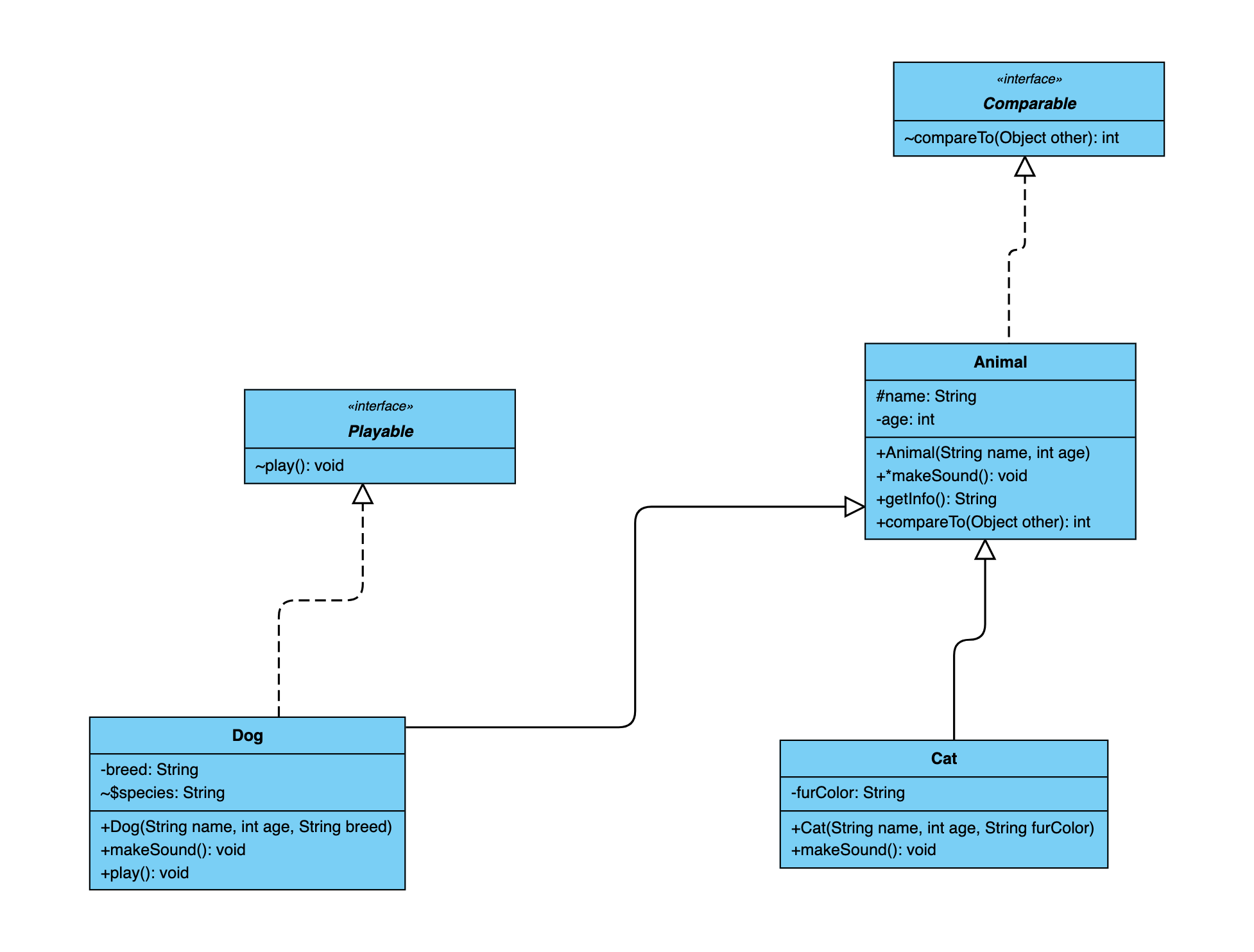

To visualize a standard Java class hierarchy, define interfaces, abstract classes, and concrete sub-classes. Standard object hierarchies like animal models demonstrate fundamental class relationships:

Java Edit Java in VPasCode
// Java animal hierarchy example
public interface Playable {
    void play();
}

public interface Comparable {
    int compareTo(Object other);
}

public abstract class Animal implements Comparable {
    protected String name;
    private int age;

    public Animal(String name, int age) {
        this.name = name;
        this.age = age;
    }

    public abstract void makeSound();

    public String getInfo() {
        return name + " is " + age + " years old";
    }

    public int compareTo(Object other) {
        Animal a = (Animal) other;
        return this.name.compareTo(a.name);
    }
}

public class Dog extends Animal implements Playable {
    private String breed;
    static String species = "Canine";

    public Dog(String name, int age, String breed) {
        super(name, age);
        this.breed = breed;
    }

    public void makeSound() {
        System.out.println("Woof!");
    }

    public void play() {
        System.out.println(name + " is playing fetch");
    }
}

public class Cat extends Animal {
    private String furColor;

    public Cat(String name, int age, String furColor) {
        super(name, age);
        this.furColor = furColor;
    }

    public void makeSound() {
        System.out.println("Meow!");
    }
}
Edit Java in VPasCode



Advanced Structural Techniques

Java visualizations excel at displaying domain models, enterprise service layers, and design patterns like repositories and factories.

1. E-Commerce Domain Model Hierarchy

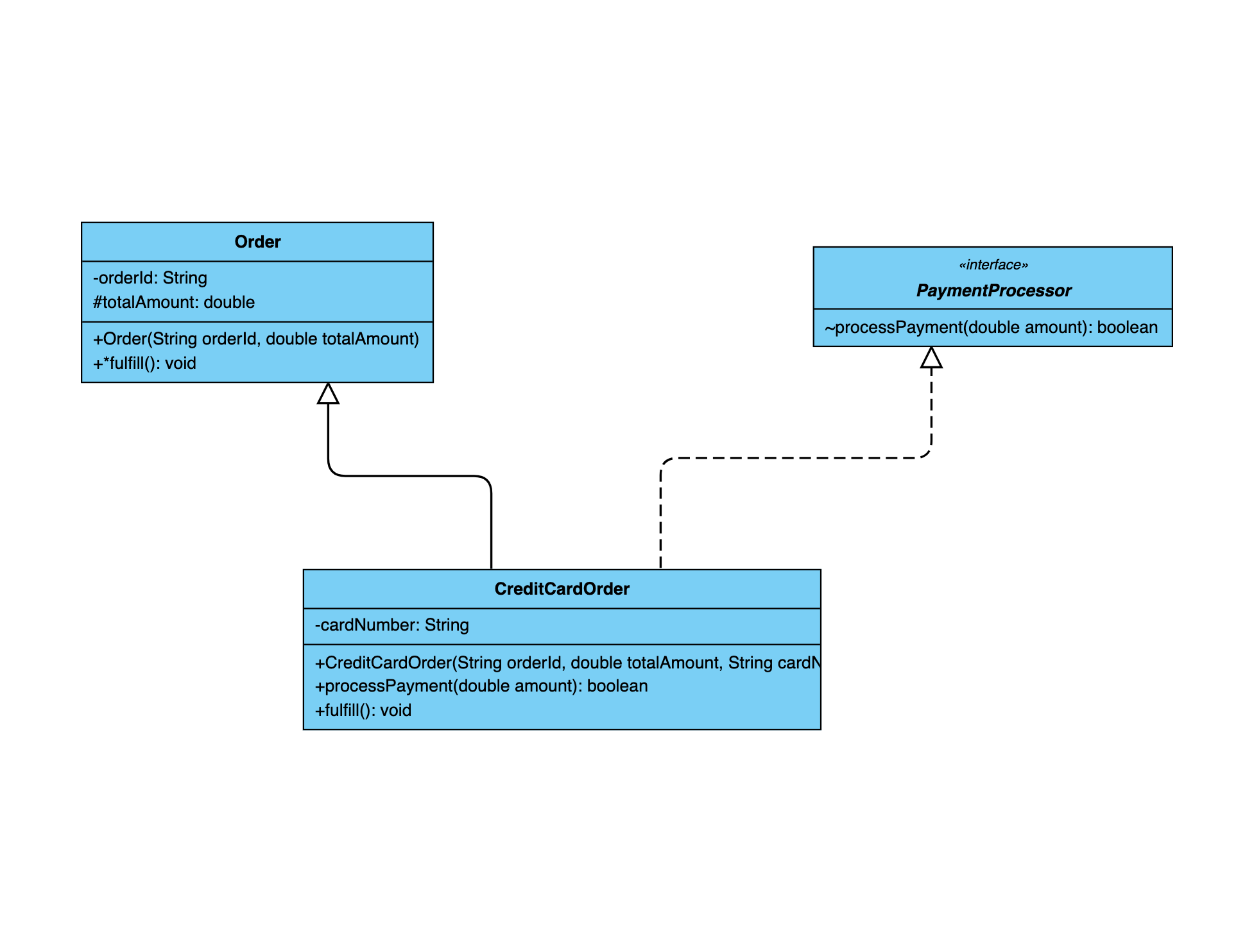

By declaring order interfaces, abstract payment handlers, and concrete checkout implementations, VPasCode maps out complex enterprise domain models into clear class nodes:

Java Edit Java in VPasCode
public interface PaymentProcessor {
    boolean processPayment(double amount);
}

public abstract class Order {
    private String orderId;
    protected double totalAmount;

    public Order(String orderId, double totalAmount) {
        this.orderId = orderId;
        this.totalAmount = totalAmount;
    }

    public abstract void fulfill();
}

public class CreditCardOrder extends Order implements PaymentProcessor {
    private String cardNumber;

    public CreditCardOrder(String orderId, double totalAmount, String cardNumber) {
        super(orderId, totalAmount);
        this.cardNumber = cardNumber;
    }

    public boolean processPayment(double amount) {
        return true;
    }

    public void fulfill() {
        System.out.println("Order " + orderId + " fulfilled via Credit Card.");
    }
}
Edit Java in VPasCode



Structuring Enterprise Data Models and Repositories

Visualizing data access layers and entity relationships helps backend teams verify object-relational mapping (ORM) structures and interface abstraction layers.

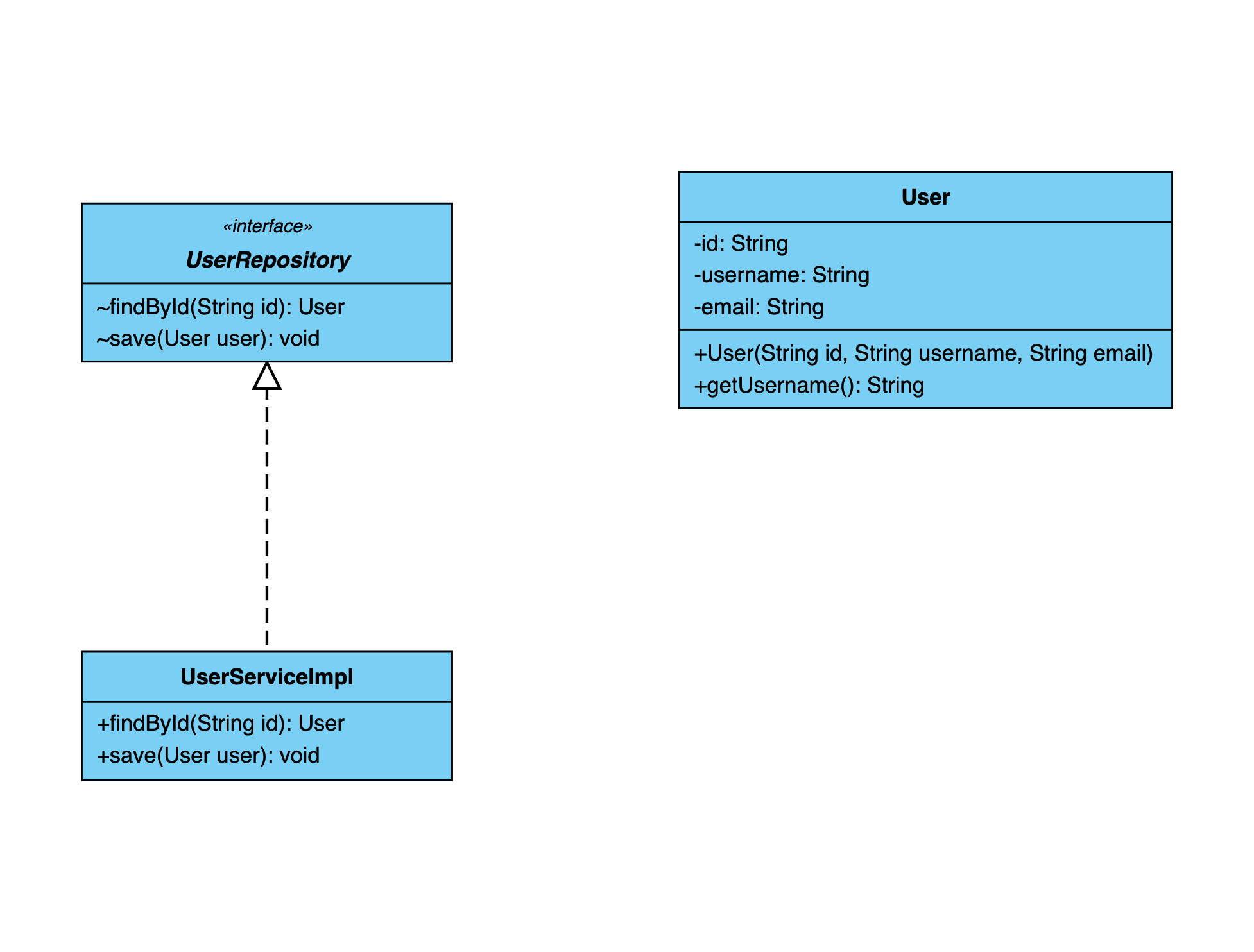

1. User Management and Repository Layer

Organize entities, data transfer objects (DTOs), and service interfaces to visualize clear separation of concerns:

Java Edit Java in VPasCode
public interface UserRepository {
    User findById(String id);
    void save(User user);
}

public class User {
    private String id;
    private String username;
    private String email;

    public User(String id, String username, String email) {
        this.id = id;
        this.username = username;
        this.email = email;
    }

    public String getUsername() {
        return username;
    }
}

public class UserServiceImpl implements UserRepository {
    public User findById(String id) {
        return new User(id, "johndoe", "[email protected]");
    }

    public void save(User user) {
        System.out.println("Saving user: " + user.getUsername());
    }
}
Edit Java in VPasCode



Strategic Best Practices

  • Declare Explicit Access Modifiers: Always specify public, protected, or private so class diagrams display member visibility clearly.
  • Use Interfaces for Behavioral Contracts: Separate behavioral contracts into interface definitions and use implements to keep visual relationships decoupled.
  • Keep Abstract Class Boundaries Clear: Use abstract class for shared state and base implementations to generate clean hierarchical class trees.
