When presenting multi-tiered hierarchies where inner rings represent high-level categories and outer rings break down sub-categories, the Sunburst Chart offers a clean, radial alternative to treemaps. By arranging nested categories into concentric rings, sunburst charts allow users to explore multi-level structural proportions, parent-child relationships, and distribution paths in a compact space—such as global product categories, organizational charts, or multi-step user drop-off paths.
The Mechanics of Sunburst Charts
In Apache ECharts, sunburst charts use type: 'sunburst'. Similar to treemaps, the series expects a nested tree structure in the data array where parent objects contain children arrays. The engine renders the root node or top-level categories in the innermost circle and expands sub-categories outward across concentric ring layers.
1. Essential Setup

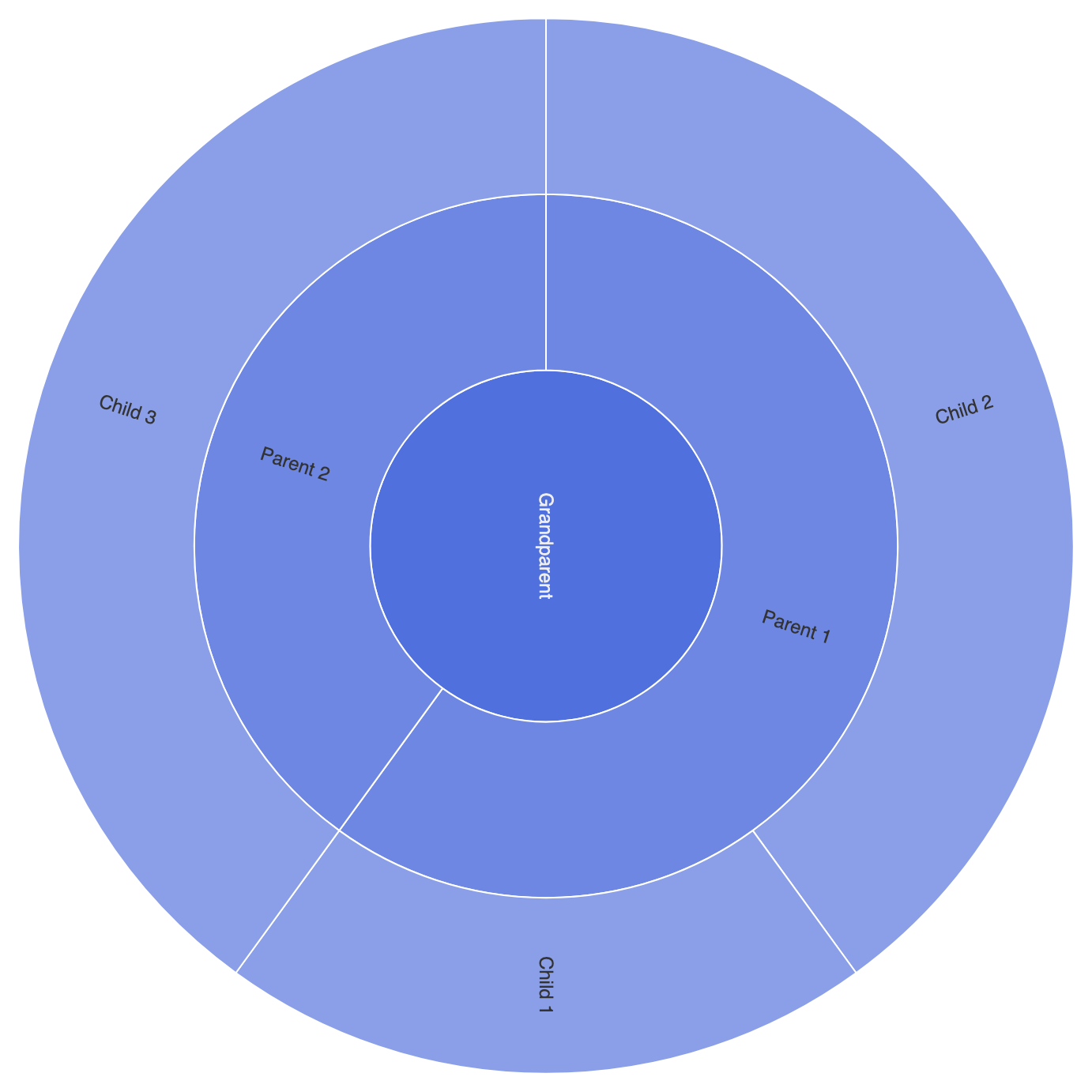

To construct a basic sunburst chart, supply a nested tree dataset and set type: 'sunburst' inside your series object:
option = {
tooltip: {
trigger: 'item',
formatter: '{b}: {c}'
},
series: [
{
type: 'sunburst',
data: [
{
name: 'Grandparent',
children: [
{
name: 'Parent 1',
value: 15,
children: [
{ name: 'Child 1', value: 5 },
{ name: 'Child 2', value: 10 }
]
},
{
name: 'Parent 2',
value: 10,
children: [
{ name: 'Child 3', value: 10 }
]
}
]
}
],
radius: [0, '90%'],
label: {
rotate: 'radial'
}
}
]
};
Advanced Structural Techniques
Sunburst charts can be customized with ring-level styling rules, color inheritance, and click-to-zoom interactive drill-downs.
1. Level-Specific Ring Customization and Drill-Down

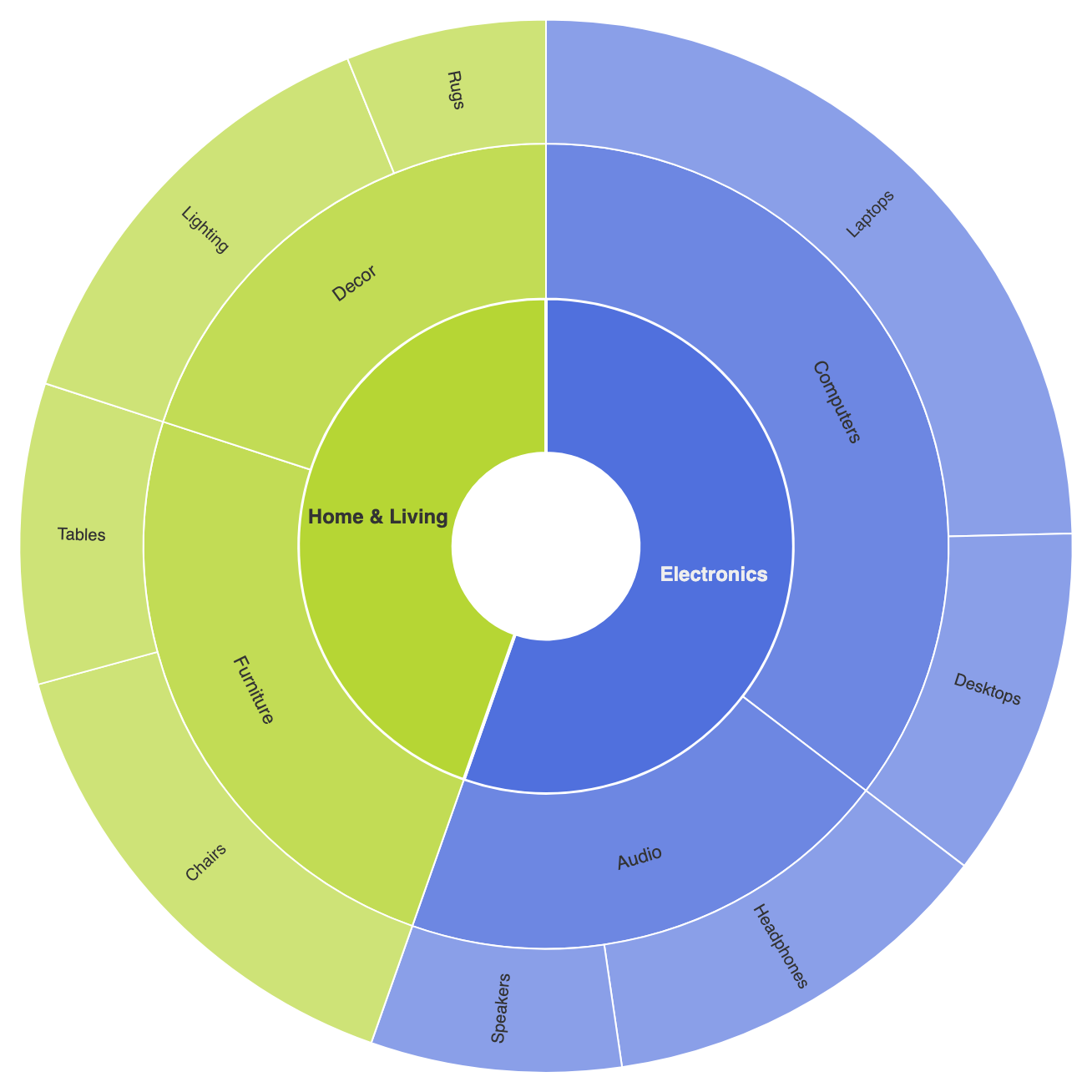

Use the levels array to define distinct radii, label behaviors, and item styles for each concentric ring layer from the center outward:
option = {
tooltip: {
trigger: 'item'
},
legend: {
top: '2%',
left: 'center',
data: ['Electronics', 'Home & Living']
},
series: [
{
type: 'sunburst',
center: ['50%', '55%'],
radius: ['10%', '85%'],
nodeClick: 'rootToNode', // Enables drill-down when clicking node
levels: [
{},
{
// Inner ring (Top-level categories)
r0: '15%',
r: '40%',
label: { rotate: 0, fontWeight: 'bold' },
itemStyle: { borderWidth: 2 }
},
{
// Middle ring (Sub-categories)
r0: '40%',
r: '65%',
label: { rotate: 'tangential', fontSize: 11 }
},
{
// Outer ring (Leaf products)
r0: '65%',
r: '85%',
label: { rotate: 'radial', fontSize: 10 }
}
],
data: [
{
name: 'Electronics',
children: [
{
name: 'Audio',
children: [
{ name: 'Headphones', value: 40 },
{ name: 'Speakers', value: 25 }
]
},
{
name: 'Computers',
children: [
{ name: 'Laptops', value: 80 },
{ name: 'Desktops', value: 35 }
]
}
]
},
{
name: 'Home & Living',
children: [
{
name: 'Furniture',
children: [
{ name: 'Chairs', value: 50 },
{ name: 'Tables', value: 30 }
]
},
{
name: 'Decor',
children: [
{ name: 'Lighting', value: 45 },
{ name: 'Rugs', value: 20 }
]
}
]
}
]
}
]
};
Fine-Tuning Layout and Label Alignment
Controlling label rotation modes (radial vs tangential) keeps text readable as sectors narrow toward outer rings.
1. Custom Sector Separations and Radial Labels

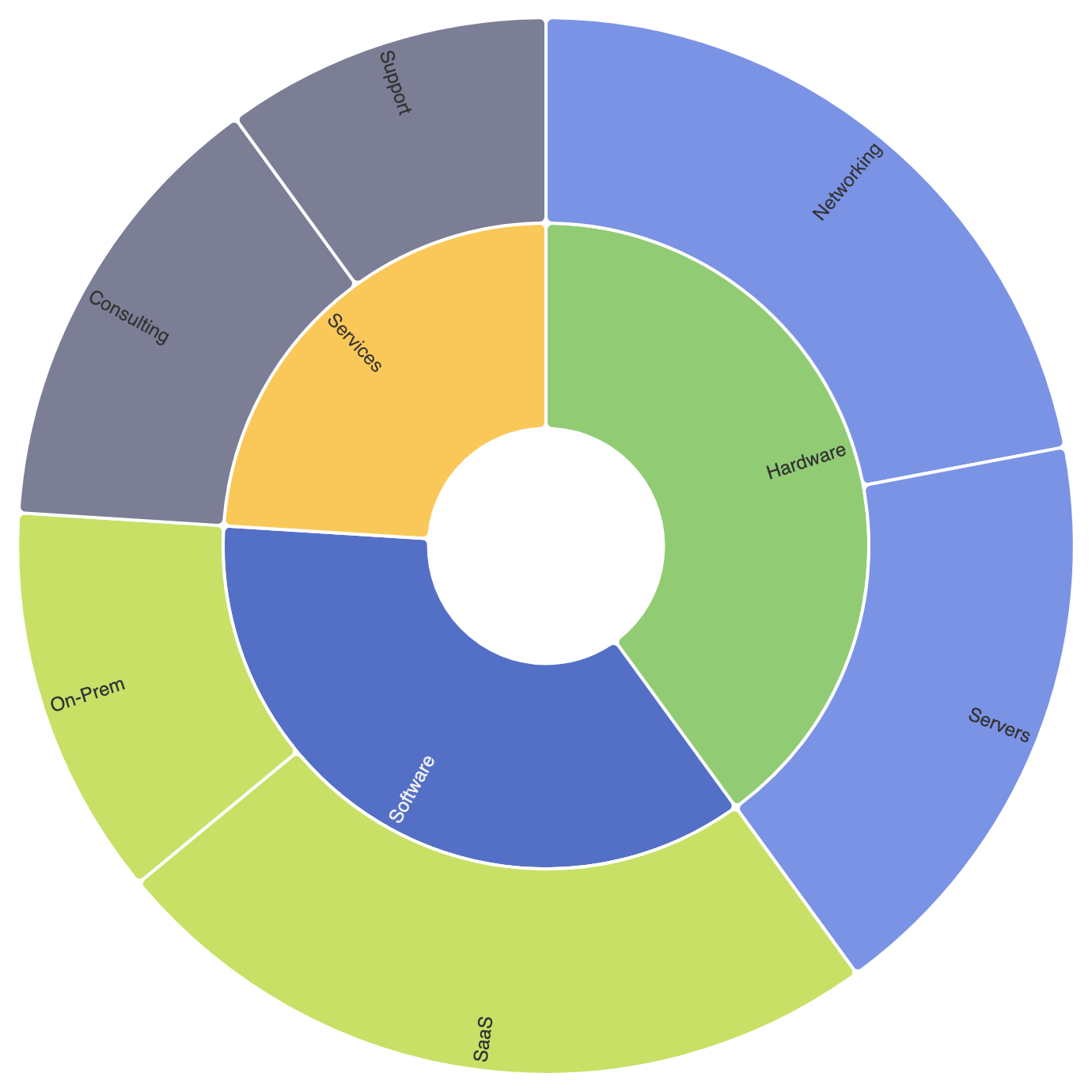

Apply item borders and set rotate: 'radial' to align text along sector radii neatly:
option = {
series: [
{
type: 'sunburst',
radius: ['20%', '90%'],
itemStyle: {
borderRadius: 4,
borderColor: '#ffffff',
borderWidth: 2
},
label: {
show: true,
rotate: 'radial',
align: 'right'
},
data: [
{
name: 'Software',
itemStyle: { color: '#5470c6' },
children: [
{ name: 'SaaS', value: 120 },
{ name: 'On-Prem', value: 60 }
]
},
{
name: 'Hardware',
itemStyle: { color: '#91cc75' },
children: [
{ name: 'Servers', value: 90 },
{ name: 'Networking', value: 110 }
]
},
{
name: 'Services',
itemStyle: { color: '#fac858' },
children: [
{ name: 'Consulting', value: 70 },
{ name: 'Support', value: 50 }
]
}
]
}
]
};
Strategic Best Practices
- Match Label Rotation to Ring Depth: Use horizontal (
rotate: 0) or tangential labels for wide inner rings, and switch toradiallabels for narrow outer sectors. - Enable
nodeClick: 'rootToNode': Interactive zoom allows users to click any parent arc to focus directly on its sub-tree without visual clutter. - Use Color Inheritance: Allow child sectors to inherit base hues from their parent node with varying lightness/saturation to maintain clear visual grouping across levels.
