Mermaid.js Event Modeling Syntax & Swimlane Guide

Event Modeling (EM) is a strategic methodology used to design and describe information systems by mapping how data shifts, translates, and changes over a linear timeline. By deliberately omitting transient system mechanics, an Event Modeling diagram concentrates strictly on the exact information flow and what a user explicitly sees at any designated moment. The native eventmodeling engine automatically categorizes your layout definitions into three isolated visual swimlanes: UI/Automation, Command/Read Model, and Events.

Understanding the System Swimlanes

When you define elements on your timeline, Mermaid assigns them to specific horizontal tracks based entirely on the underlying entity types:

• UI/Automation Lane: Holds user interfaces (ui) and backend background processors (pcr / processor). Represents how actions are triggered or visualized.
• Command/Read Model Lane: Holds commands (cmd / command) that intend to alter system state, or read models (rmo / readmodel) that hold structured query data.
• Events Lane: Holds historical domain events (evt / event). This track captures the absolute source of truth regarding what has occurred in the past.

Basic Syntax Structure (Compact vs. Relaxed)

Every diagram begins with the eventmodeling declaration. You can map out your timeline using either a compact syntax (using short structural tokens like tf, ui, cmd, evt) or a descriptive relaxed syntax (using timeframe, command, readmodel). Both styles can be mixed interchangeably.

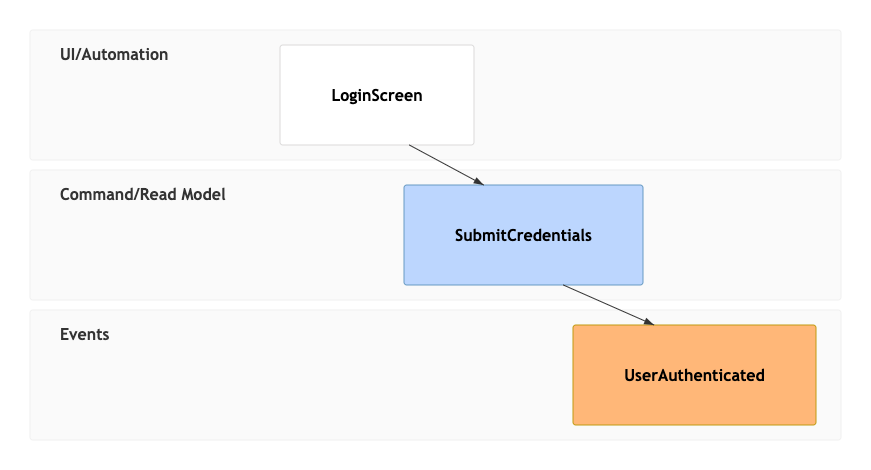

1. Compact Syntax Blueprint

eventmodeling
tf 01 ui LoginScreen
tf 02 cmd SubmitCredentials
tf 03 evt UserAuthenticated

2. Relaxed Syntax Blueprint

eventmodeling
timeframe 01 ui LoginScreen
timeframe 02 command SubmitCredentials
timeframe 03 event UserAuthenticated

Syntax Reference

The table below breaks down the primary data components, formatting keywords, and shortcut tokens used to establish Event Modeling frames inside the Mermaid runtime interpreter.

Documenting Context Data Projections

To provide high-density information layouts, Mermaid permits embedding explicit data schemas or state mockups directly into your timeline frames. You can implement this using either inline fields or external structural data blocks.

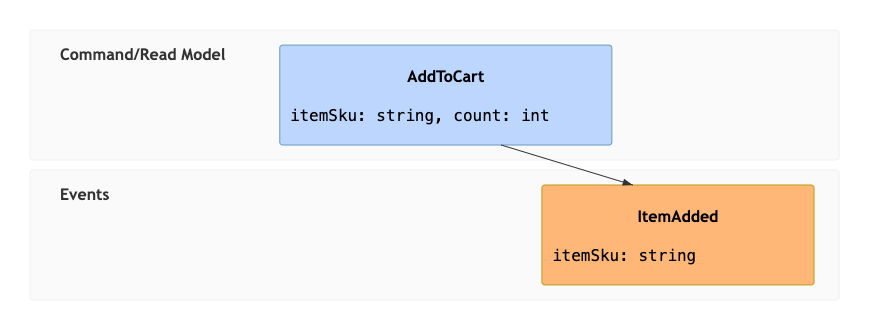

1. Inline Data Definitions

For brief parameter definitions, append an explicit data map surrounded by curly brackets ({ }) directly on the active timeframe line statement:

eventmodeling
tf 01 cmd AddToCart { itemSku: string, count: int }
tf 02 evt ItemAdded { itemSku: string }

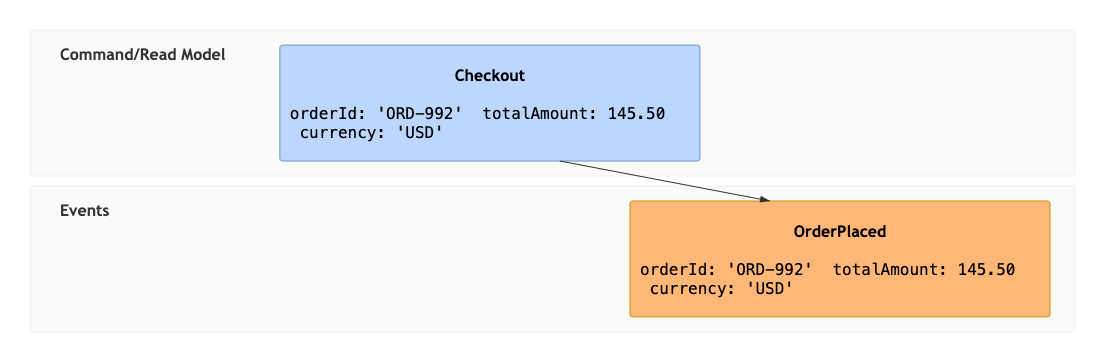

2. Separate Data Blocks (Double Square Brackets)

When handling complex object matrices or reusing matching properties across different frames, map an external descriptor. Place a pointer reference enclosed within double square brackets ([[BlockID]]) on the timeframe line, and detail the object components separately at the bottom of the script via the data keyword:

eventmodeling
tf 01 cmd Checkout [[OrderData01]]
tf 02 evt OrderPlaced [[OrderData01]]

data OrderData01 {
  orderId: 'ORD-992'
  totalAmount: 145.50
  currency: 'USD'
}

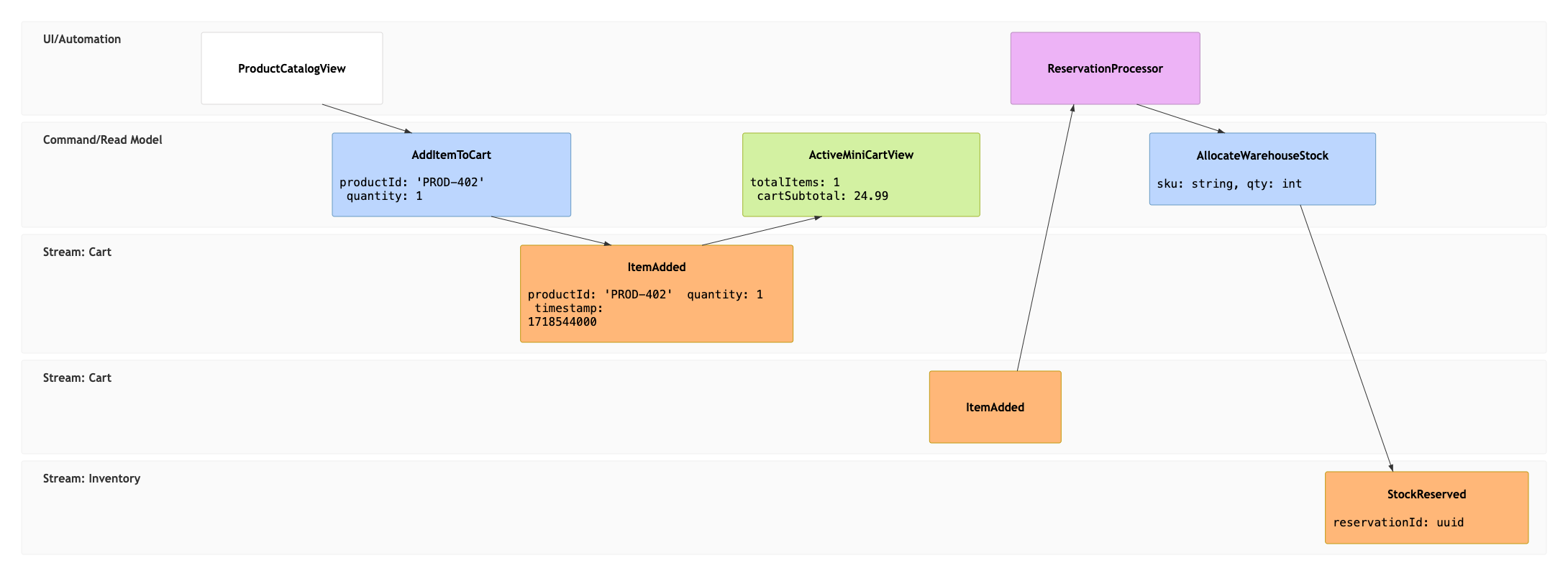

Real-World Blueprint: E-Commerce Inventory Automation

This comprehensive, multi-lane blueprint showcases an advanced architectural e-commerce workflow. It maps out sequential front-end user actions, transitions through processing commands, tracks historical event footprints, implements an automated background microservice processor via a resetframe (rf), and provides isolated data block models.

eventmodeling
%% Phase 1: User Cart Interaction
tf 01 ui ProductCatalogView
tf 02 cmd AddItemToCart [[CartCommand]]
tf 03 evt Cart.ItemAdded [[CartEvent]]
tf 04 rmo ActiveMiniCartView [[CartPayload]]

%% Phase 2: Automated Background Inventory Validation
rf 05 evt Cart.ItemAdded
tf 06 pcr ReservationProcessor
tf 07 cmd AllocateWarehouseStock { sku: string, qty: int }
tf 08 evt Inventory.StockReserved { reservationId: uuid }

%% External Data Scheme Specifications
data CartCommand {
  productId: 'PROD-402'
  quantity: 1
}
data CartEvent {
  productId: 'PROD-402'
  quantity: 1
  timestamp: 1718544000
}
data CartPayload {
  totalItems: 1
  cartSubtotal: 24.99
}

Syntax Tip: To create cleanly organized secondary swimming tracks under the main lanes or to isolate multiple sub-systems, you can prepend a dot-separated namespace qualifier string onto your entity labels (for example: evt Cart.ItemAdded vs. evt Inventory.StockReserved). The engine will automatically generate distinct subgroup lines for those entities.

Common Syntax Pitfalls & System Constraints

When engineering highly dense time-series behavior blocks, keep these formatting validation rules in mind to prevent compiling faults:

• Timeframe Tracking Sequence numbers: Every tf or timeframe assignment requires an explicit numerical identifier slot token immediately following it. Writing a token definition like tf ui ProductView without an intermediate number index will halt system parsing.
• Whitespace and Object Formatting: Inside JSON-style data maps or standalone data declarations, maintain clean assignments. Forgetting an opening brace or trailing brackets can lead to unresolved grid layouts.
• Differentiating Timeframes vs. Resetframes: Use tf for forward-moving, human-driven operations. Use rf / resetframe intentionally when you need to illustrate out-of-band triggers, such as a background cron job processing an event that happened previously.
• Immutable Data Re-use: When referencing the exact same data payload layout across multiple timeline steps, preserve identical naming matches across your data pointer hooks to prevent duplicate node generation.
