PlantUML Network Diagram Syntax Guide

What is a Network Diagram?

A Network Diagram (powered by the nwdiag engine inside PlantUML) is an infrastructure architecture diagram used to visualize computer networks, IP subnets, server topologies, firewalls, and routing structures. It highlights how servers, cloud instances, and database nodes connect across physical or virtual network segments. With VPasCode, you can write concise text scripts to build publication-ready network diagrams automatically. This eliminates manual shape snapping and wire routing on a visual canvas while keeping infrastructure layouts versionable alongside your code and deployment scripts.

Core Syntax Guide: Elements and Constructs

Building a Network Diagram in VPasCode uses network block definitions and node declarations wrapped inside standard @startnwdiag and @endnwdiag block boundaries.

1. Defining Subnets and Network Segments

Declare network segments using the network block name, and specify subnet CIDR blocks or IP ranges using the address parameter:
PlantUML Edit PlantUML in VPasCode
@startnwdiag
network DMZ {
  address = "210.x.x.x/24"
  web01;
  web02;
}
@endnwdiag
Edit PlantUML in VPasCode

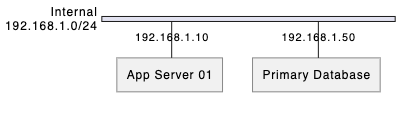

2. Assigning Node IP Addresses and Labels

Assign explicit IP addresses and human-readable labels to specific network nodes directly inside the network block:
PlantUML Edit PlantUML in VPasCode
@startnwdiag
network Internal {
  address = "192.168.1.0/24"

  app01 [address = "192.168.1.10", description = "App Server 01"];
  db01  [address = "192.168.1.50", description = "Primary Database"];
}
@endnwdiag
Edit PlantUML in VPasCode

Pro Tip: Using description = "Human Label" gives nodes readable names while keeping short variable keys (like app01 or db01) for cleaner script maintenance.

3. Multi-Homed Nodes (Connecting Across Subnets)

To connect a server or firewall across multiple network segments, simply declare the same node inside each corresponding network block:
PlantUML Edit PlantUML in VPasCode
@startnwdiag
network Public {
  address = "10.0.1.0/24"
  firewall [address = "10.0.1.1"];
}

network Private {
  address = "10.0.2.0/24"
  firewall [address = "10.0.2.1"];
  app_server [address = "10.0.2.10"];
}
@endnwdiag
Edit PlantUML in VPasCode

4. Grouping Nodes with Clusters

Group related servers (such as database clusters or load balancer pairs) visually using the group container construct:
PlantUML Edit PlantUML in VPasCode
@startnwdiag
network Internal {
  db01;
  db02;
}

group DBCluster {
  color = "LightPink";
  description = "HA Database Cluster";
  db01;
  db02;
}
@endnwdiag
Edit PlantUML in VPasCode

Best Practices for Clean Layouts

  • Label Subnets Explicitly: Always supply an address = "CIDR" parameter for each network block to clarify routing boundaries.
  • Reuse Node Keys for Routers/Firewalls: Declare dual-homed appliances across adjacent network blocks to automatically generate gateway bridging lines.
  • Color-Code High Availability Groups: Use group containers with custom background colors to highlight load-balanced or clustered server pools.

Real-World PlantUML Network Diagram Examples

Copy and paste these blueprints directly into your VPasCode editor panel to see them render in real time.

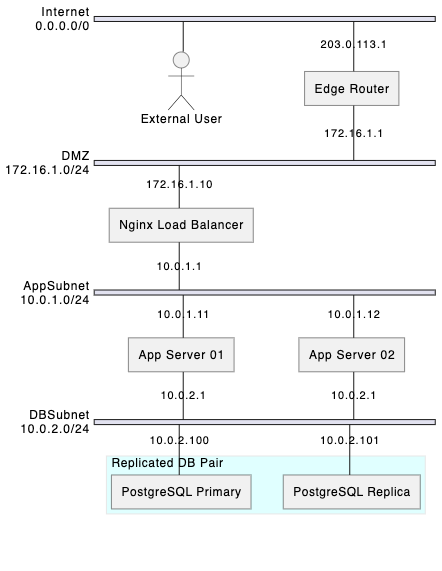

Example 1: Enterprise 3-Tier Web Application Topology

This blueprint models a classic enterprise multi-tier architecture spanning an External Internet segment, a DMZ Load Balancer layer, an Application Subnet, and an Isolated Database Subnet.
PlantUML Edit PlantUML in VPasCode
@startnwdiag
network Internet {
  address = "0.0.0.0/0"
  user [shape = "actor", description = "External User"];
  router [address = "203.0.113.1", description = "Edge Router"];
}

network DMZ {
  address = "172.16.1.0/24"
  router [address = "172.16.1.1"];
  lb01 [address = "172.16.1.10", description = "Nginx Load Balancer"];
}

network AppSubnet {
  address = "10.0.1.0/24"
  lb01 [address = "10.0.1.1"];
  app01 [address = "10.0.1.11", description = "App Server 01"];
  app02 [address = "10.0.1.12", description = "App Server 02"];
}

network DBSubnet {
  address = "10.0.2.0/24"
  app01 [address = "10.0.2.1"];
  app02 [address = "10.0.2.1"];
  db_primary [address = "10.0.2.100", description = "PostgreSQL Primary"];
  db_replica [address = "10.0.2.101", description = "PostgreSQL Replica"];
}

group DatabaseGroup {
  color = "LightCyan"
  description = "Replicated DB Pair"
  db_primary;
  db_replica;
}
@endnwdiag
Edit PlantUML in VPasCode

Syntax Breakdown: Demonstrates multi-homed gateway bridging across four network segments (Internet, DMZ, AppSubnet, DBSubnet) and groups database instances using a colored group cluster container.

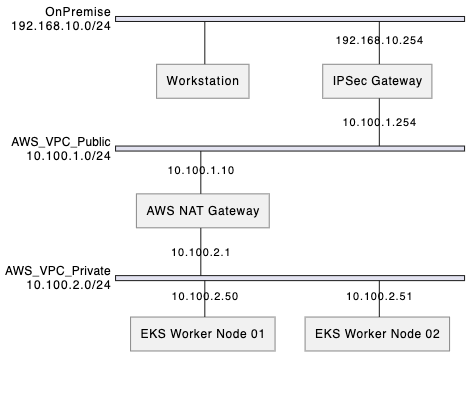

Example 2: Hybrid Cloud VPN Network Infrastructure

This blueprint structures a secure hybrid cloud connection linking an On-Premise Corporate Network to an AWS Virtual Private Cloud (VPC) via a VPN Gateway.
PlantUML Edit PlantUML in VPasCode
@startnwdiag
network OnPremise {
  address = "192.168.10.0/24"
  office_pc [description = "Workstation"];
  vpn_appliance [address = "192.168.10.254", description = "IPSec Gateway"];
}

network AWS_VPC_Public {
  address = "10.100.1.0/24"
  vpn_appliance [address = "10.100.1.254"];
  nat_gateway [address = "10.100.1.10", description = "AWS NAT Gateway"];
}

network AWS_VPC_Private {
  address = "10.100.2.0/24"
  nat_gateway [address = "10.100.2.1"];
  k8s_worker1 [address = "10.100.2.50", description = "EKS Worker Node 01"];
  k8s_worker2 [address = "10.100.2.51", description = "EKS Worker Node 02"];
}
@endnwdiag
Edit PlantUML in VPasCode

Syntax Breakdown: Shows secure hybrid networking by routing traffic from an on-premise local network through a dual-homed IPSec VPN gateway into public and private VPC subnets.
